MPN: S5620WGM4NR

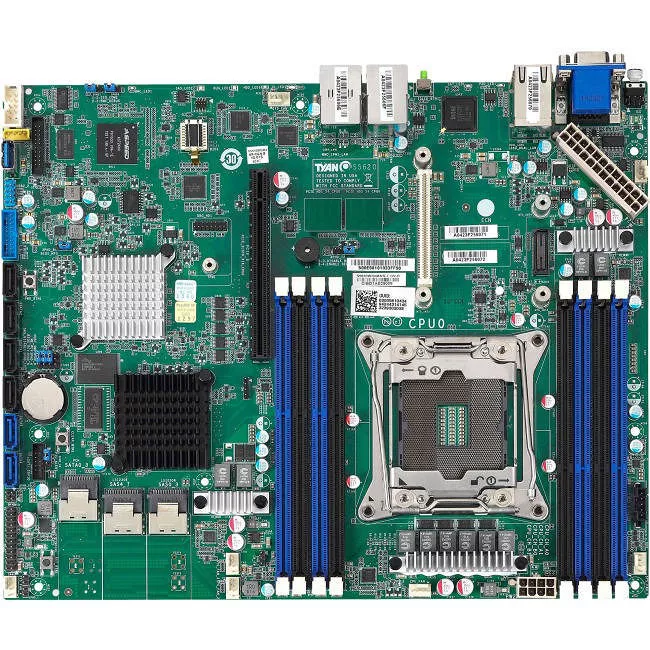

TYAN S5620WGM4NR S5620 Server Motherboard - C612 Chipset - Socket LGA-2011
Highlights
About
Specifications
Single-socket server implementation for CSP deployment
- Single LGA2011 socket supports (1) Intel® Xeon® processor E5-2600/E5-1600 v3 series processors
- Intel® C612
- (8) 288-pin DDR4 DIMM slots RDIMM 2133/1866/1600MHz; LRDIMM/LRDIMM 3DS 2133/1600MHz
- Support up to 256GB RDIMM/512GB LRDIMM/1,024GB LDRIMM 3DS (Follow latest Intel DDR4 Memory POR)
- (1) PCI-E Gen3 x16 slot
- (1) OCP Mezz. slot
- (10) SATA ports by (6) SATA-III and (1) mini-SAS connectors running at 6.0 Gb/s
- (8) SATA/SAS ports by (2) mini-SAS connectors running at 6.0Gb/s (-W SKU)
- (4) GbE RJ45 (via Intel® I350-AM2/ I210, 1port shared with IPMI) (2) GbE RJ45 (via Intel® I210, 1port shared with IPMI) (-2NR SKU)
- ATX (12 x 9.6 , 305mm x 243.8mm)
