TYN-S5545AG2NR-EX-00
MPN: S5545AG2NR-EX

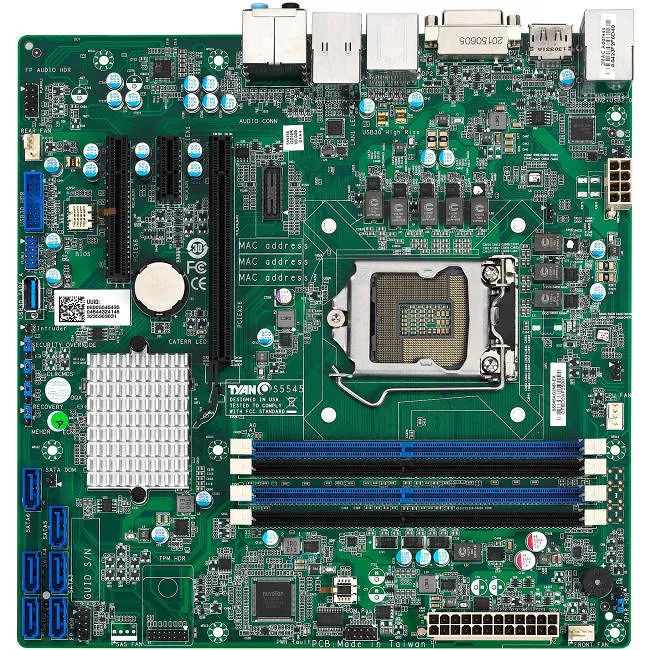

TYAN S5545AG2NR-EX Tempest EX S5545-EX Server Motherboard - Q170 Chipset - Socket LGA-1151

Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
S5545AG2NR-EX
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Tempest EX
Product Model
S5545
Product Name
Tempest EX S5545-EX µATX Intel Embedded Motherboard With Triple Monitor Output
Packaged Quantity
1
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
Q170
Total Processor Supported
1
Processor Socket
Socket H4 LGA-1151
Processor Supported
  • Core i3
  • Pentium
  • Core i5
  • Core i7
    • Memory
    Number of Memory Slots
    4
    Memory Form Factor
  • DIMM
  • UDIMM
    • Maximum Memory Supported
    64 GB
    Memory Technology
    DDR4 SDRAM
    Memory Speed Supported
  • 2133 MHz
  • 2400 MHz
    • I/O Controller
    Controller Type
    Serial ATA/600
    Intel RSTe
    Yes
    RAID Supported
    Yes
    RAID Levels
  • 10
  • 5
  • 1
  • 0
    • Video
    Onboard Video
    CPU Dependent Video
    Audio
    Audio Channels
    7.1
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Total Number of Expansion Slots
    3
    Total Number of PCI Express Slots
    3
    Number of PCI Express x1 Slots
    1
    Number of PCI Express x8 Slots
    1
    Number of PCI Express x16 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    6
    Number of USB 3.0 Ports
    4
    DisplayPort
    Yes
    DVI
    Yes
    Onboard Interfaces
    Number of SATA Interfaces
    6
    Total Number of Onboard USB Ports
    5
    Number of Onboard USB 3.0 Ports
    3
    Physical Characteristics
    Form Factor
    Micro ATX
    Width
    9.6"
    Depth
    9.6"
    Miscellaneous
    Package Contents
    • Tempest EX S5545-EX µATX Intel Embedded Motherboard With Triple Monitor Output
    • 1 x Quick Installation Guide
    • 1 x TYAN Device Driver CD
    • 1 x I/O Shield
    • 2 x SATA Signal Cables
    Country of Origin
    Taiwan
    Environmentally Friendly
    Yes
    Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • China Restriction of Hazardous Substances (China RoHS)
    • Warranty
    Limited Warranty
    3 Year
