MPN: S5542GM2NR-HE-EX

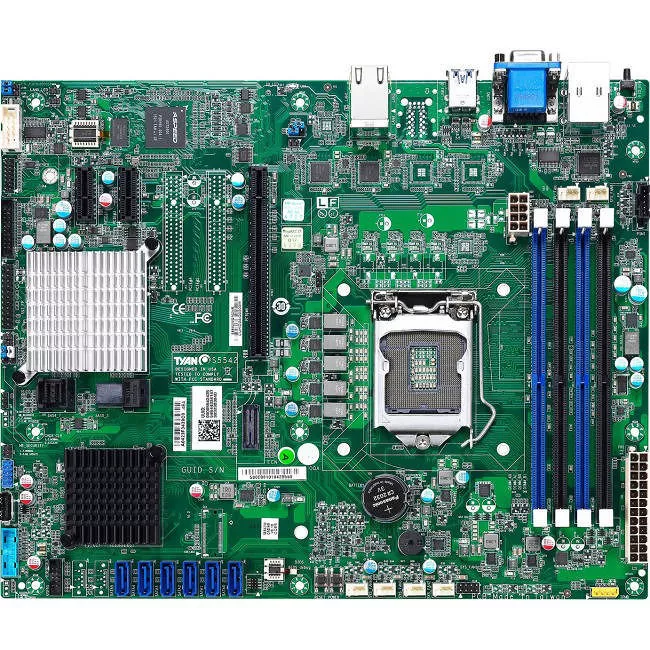

MiTAC S5542GM2NR-HE-EX Server Motherboard - 1x Socket H4 LGA-1151 - Intel C236 - 4x DDR4 - ATX - 1x PCIe x16 - RAID
Highlights
Processor Socket:
Socket H4 LGA-1151
Total Processor Supported:
1
Memory Technology:
DDR4 SDRAM
Maximum Memory:
64 GB
Specifications
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
S5542GM2NR-HE-EX
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Tempest EX
Product Model
S5542-EX
Product Name
Tempest EX S5542-EX Server Motherboard
Packaged Quantity
1
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
C236
Total Processor Supported
1
Processor Socket
Socket H4 LGA-1151
Processor Supported
Memory
Number of Memory Slots
4
Memory Form Factor
Maximum Memory Supported
64 GB
Memory Technology
DDR4 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Serial ATA/600
Intel RSTe
Yes
RAID Supported
Yes
RAID Levels
Video
Onboard Video
On-board Video Chipset
Graphics Controller Model
AST2400
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
5
Total Number of PCI Express Slots
5
Number of PCI Express x1 Slots
2
Number of PCI Express x8 Slots
2
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 3.0 Ports
4
VGA
Yes
Onboard Interfaces
Number of SATA Interfaces
8
Total Number of Onboard USB Ports
5
Number of Onboard USB 3.0 Ports
2
Physical Characteristics
Form Factor
ATX
Width
12"
Depth
9.6"
Miscellaneous
Package Contents
- Tempest EX S5542-EX Server Motherboard
- 1 x Quick Installation Guide
- 1 x TYAN Device Driver CD
- 1 x I/O Shield
- 2 x SATA Signal Cables
Country of Origin
Taiwan
Environmentally Friendly
Yes
Environmental Compliance
Warranty
Limited Warranty
3 Year
