TYN-S5539GM2NR-D67-00
MPN: S5539GM2NR-D67

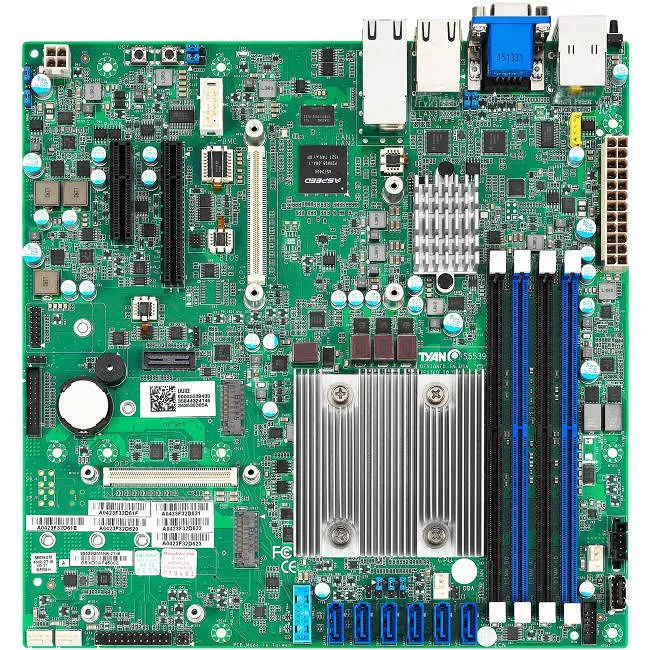

TYAN S5539GM2NR-D67 S5539 Server Motherboard - Xeon D-1567 CPU

Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
S5539GM2NR-D67
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Model
S5539
Product Name
S5539 Server Motherboard (BTO)
Packaged Quantity
1
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Integrated Processor
Integrated Processor Type
Xeon
Integrated Processor Model
D-1567
Integrated Processor Speed
2.10 GHz
Integrated Processor Core
Dodeca-core (12 Core)
Memory
Number of Memory Slots
4
Memory Form Factor
  • DIMM
  • UDIMM
  • RDIMM
    • Maximum Memory Supported
    128 GB
    Memory Technology
    DDR4 SDRAM
    Memory Speed Supported
    2133 MHz
    I/O Controller
    Controller Type
    Serial ATA/600
    Video
    Onboard Video
    On-board Video Chipset
    Graphics Controller Model
    AST2400
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Total Number of Expansion Slots
    4
    Total Number of PCI Express Slots
    2
    Number of PCI Express x4 Slots
    1
    Number of PCI Express x8 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    2
    Number of USB 3.0 Ports
    2
    VGA
    Yes
    Onboard Interfaces
    Number of SATA Interfaces
    6
    Total Number of Onboard USB Ports
    3
    Number of Onboard USB 3.0 Ports
    2
    Physical Characteristics
    Form Factor
    Micro ATX
    Width
    9.6"
    Depth
    9.6"
    Miscellaneous
    Package Contents
    • S5539 Server Motherboard (BTO)
    • 1 x Quick Installation Guide
    • 1 x TYAN Device Driver CD
    Country of Origin
    Taiwan
    Environmentally Friendly
    Yes
    Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
    • Warranty
    Limited Warranty
    3 Year
