Highlights:
  • Processor Socket: Socket H3 LGA-1150
  • Total Processor Supported: 1
  • Memory Technology: DDR3 SDRAM
  • Maximum Memory: 32 GB
Contact sales for pricing
Entry single-socket for Embedded/Workstation Product
  • Single LGA1150 socket
    • Supports (1) Intel® Core i3/ i5/ i7 (22nm/Haswell) series processors
    • Supports (1) Intel® Xeon E3-1200 v3, i3 (22nm/Haswell) series processor
    • Supports (1) Intel Xeon E3-1200 v3 & 4th Gen. Core i3 series processors (-HE SKU)
  • Intel® Q87
    • Intel® Lynx Point C226 (-HE SKU)
  • (4) 240-pin DDR3 DIMM slots
    • Support up to 32GB Unbuffered Non-ECC DDR3 1600/1333/1066
    • Support up to 32GB Unbuffered ECC DDR3 1600/1333/1066
  • (1) PCI-E Gen.2 x1 slot
    • (1) PCI-E Gen.2 x8 slots (w/ x4 link)
    • (1) PCI-E Gen.3 x16 slot
  • (5) SATA ports running at 6.0 Gb/s
  • (2) GbE RJ45 (via Intel® I210 + via Intel® I217 PHY)
  • Micro ATX (9.6x9.6 , 243.8x243.8mm)
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
S5535AG2NR
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Model
S5535AG2NR
Product Name

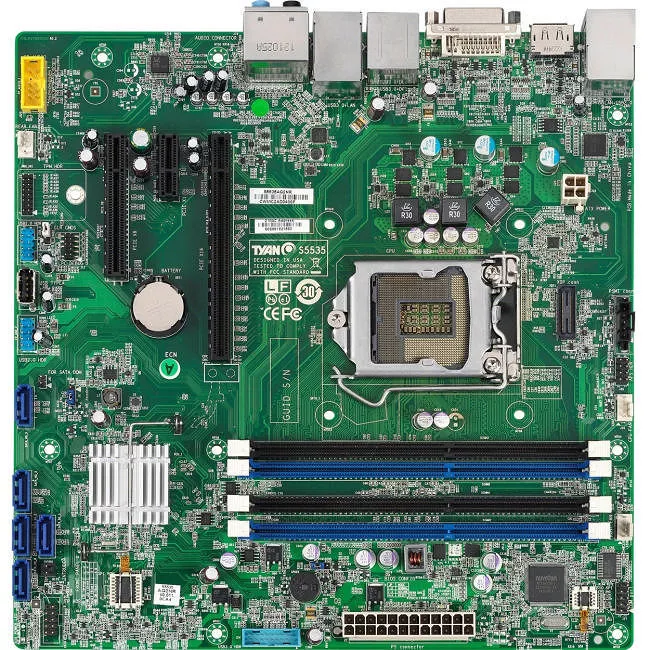

S5535AG2NR Server Motherboard
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Total Processor Supported
1
Processor Socket
Socket H3 LGA-1150
Processor Supported
  • Core i3
  • Core i5
  • Core i7
  • Memory
    Number of Memory Slots
    4
    Memory Form Factor
    DIMM
    Maximum Memory
    32 GB
    Memory Standard
  • DDR3-1600/PC3-12800
  • DDR3-1333/PC3-10600
  • DDR3-1066/PC3-8500
  • Memory Technology
    DDR3 SDRAM
    Memory Speed Supported
  • 1.60 GHz
  • 1.33 GHz
  • 1.07 GHz
  • I/O Controller
    Controller Type
    Serial ATA/600
    RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
  • 5
  • 10
  • Video
    Onboard Video
    CPU Dependent Video
    Graphics Controller Manufacturer
    Intel
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Number of Total Expansion Slots
    3
    Total Number of PCI Express Slots
    3
    Number of PCI Express x1 Slots
    1
    Number of PCI Express x8 Slots
    1
    Number of PCI Express x16 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    6
    Number of USB 3.0 Ports
    4
    DisplayPort
    Yes
    DVI
    Yes
    Onboard Interfaces
    Number of SATA Interfaces
    5
    Total Number of Onboard USB Ports
    7
    Number of Onboard USB 3.0 Ports
    2
    Physical Characteristics
    Form Factor
    Micro ATX
    Width
    9.6"
    Depth
    9.6"
    Miscellaneous
    Package Contents
    • S5535AG2NR Server Motherboard
    • 1 x Quick Installation Guide
    • 1 x TYAN installation CD
    • 5 x SATA signal cables
    • 1 x CCBL-035J
    • 2-port USB bracket cable
    Environmentally Friendly
    Yes
    Environmental Certification
  • RoHS-6
  • China RoHS
  • Country of Origin
    China
