TYN-S5517AG2NR-00
MPN: S5517AG2NR

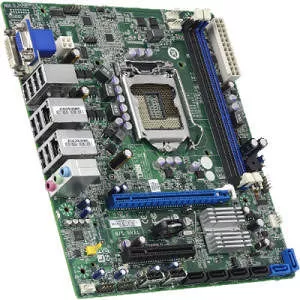

TYAN S5517AG2NR Server Motherboard - Intel Q67 Express Chipset - Socket H2 LGA-1155 - Flex ATX

Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
S5517AG2NR
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Model
S5517AG2NR
Product Name
S5517AG2NR Server Motherboard
Packaged Quantity
1
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
Q67 Express
Total Processor Supported
1
Processor Socket
Socket H2 LGA-1155
Processor Supported
  • Core i5
  • Core i7
  • Core i3
    • 64-bit Processing
    Yes
    Memory
    Number of Memory Slots
    2
    Memory Form Factor
  • DIMM
  • UDIMM
    • Maximum Memory Supported
    16 GB
    Memory Standard
  • DDR3-1600/PC3-12800
  • DDR3-1333/PC3-10600
  • DDR3-1066/PC3-8500
    • Memory Technology
    DDR3 SDRAM
    Memory Speed Supported
  • 1600 MHz
  • 1333 MHz
  • 1066 MHz
    • I/O Controller
    Controller Type
  • Serial ATA/300
  • Serial ATA/600
    • RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
  • 5
  • 1+0
    • Video
    Onboard Video
    CPU Dependent Video
    Graphics Controller Manufacturer
    Intel
    Graphics Memory Technology
    DDR3 SDRAM
    Graphics Memory Accessibility
    Shared
    Audio
    Sound Controller Manufacturer
    Realtek
    Sound Controller Model
    ALC888
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Number of Total Expansion Slots
    2
    PCI Express Standard
  • PCI Express 3.0
  • PCI Express 2.0
    • Total Number of PCI Express Slots
    2
    Number of PCI Express x8 Slots
    1
    Number of PCI Express x16 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    8
    Number of USB 2.0 Ports
    8
    Audio Line In
    Yes
    Audio Line Out
    Yes
    Microphone Port
    Yes
    VGA
    Yes
    DVI
    Yes
    Number of DVI Outputs
    1
    Network (RJ-45)
    Yes
    Number of Network (RJ-45) Ports
    2
    Onboard Interfaces
    Number of SATA Interfaces
    6
    Total Number of Onboard USB Ports
    5
    Number of Onboard USB 2.0 Ports
    5
    Onboard Serial Header
    Yes
    Onboard LEDs Header
    Yes
    Onboard Audio Header
    Yes
    Power Description
    Power Supply Supported
    ATX12V
    Physical Characteristics
    Form Factor
    Flex ATX
    Width
    9"
    Depth
    7.5"
    Miscellaneous
    Package Contents
    • S5517AG2NR Server Motherboard
    • 1 x User's Manual
    • 1 x Quick Ref. Guide
    • 1 x Installation CD
    • 1 x I/O Shield
    • 6 x SATA Signal Cables
    • 1 x CCBL-035J 2-port USB Bracket Cable
    Certifications & Standards
    • FCC Class B
    • CE
    Environmentally Friendly
    Yes
    Environmental Certification
  • WEEE
  • China RoHS
  • RoHS-6
    • Environmental Compliance
  • China Restriction of Hazardous Substances (China RoHS)
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
    • Warranty
    Limited Warranty
    3 Year
