TYN-S5512G2NRLE-00
MPN: S5512G2NRLE

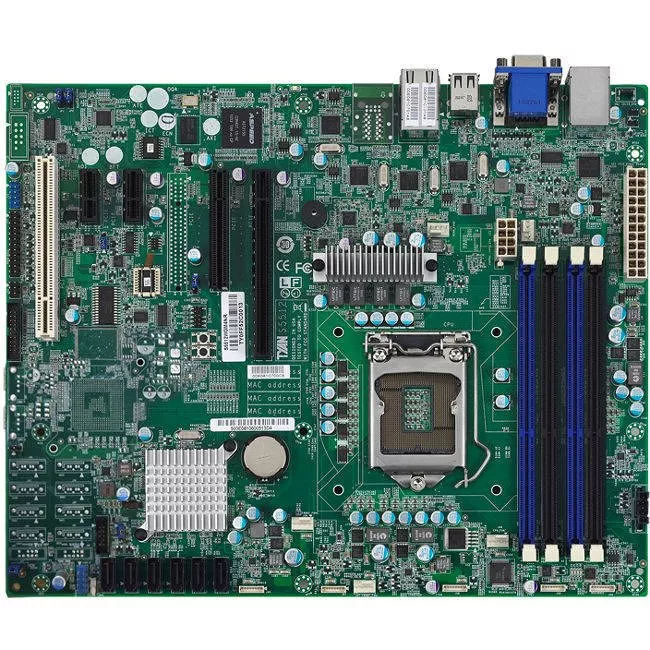

TYAN S5512G2NRLE Server Motherboard - Intel C202 Chipset - Socket H2 LGA-1155 - Retail

Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
S5512G2NRLE
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Model
S5512-LE
Product Name
S5512-LE Server Motherboard
Packaged Quantity
1
Package Type
Retail
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
C202
Total Processor Supported
1
Processor Socket
Socket H2 LGA-1155
Processor Supported
  • Xeon
  • Core i3
    • 64-bit Processing
    Yes
    Memory
    Number of Memory Slots
    4
    Memory Form Factor
  • DIMM
  • UDIMM
    • Maximum Memory Supported
    32 GB
    Memory Standard
  • DDR3-1333/PC3-10600
  • DDR3-1066/PC3-8500
    • Memory Technology
    DDR3 SDRAM
    Memory Speed Supported
  • 1333 MHz
  • 1066 MHz
    • I/O Controller
    Controller Type
    Serial ATA/300
    RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
  • 5
  • 1+0
    • Video
    Onboard Video
    On-board Video Chipset
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2150-GP-V
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Number of Total Expansion Slots
    5
    Number of PCI Slots
    1
    PCI Express Standard
  • PCI Express 3.0
  • PCI Express 2.0
    • Total Number of PCI Express Slots
    4
    Number of PCI Express x1 Slots
    2
    Number of PCI Express x8 Slots
    1
    Number of PCI Express x16 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 2.0 Ports
    4
    Serial Port
    Yes
    Audio Line In
    No
    Audio Line Out
    No
    Microphone Port
    No
    VGA
    Yes
    Network (RJ-45)
    Yes
    Number of Network (RJ-45) Ports
    2
    Onboard Interfaces
    Number of SATA Interfaces
    6
    Total Number of Onboard USB Ports
    4
    Number of Onboard USB 2.0 Ports
    4
    Onboard LEDs Header
    Yes
    Power Description
    Power Supply Supported
    ATX12V
    Physical Characteristics
    Form Factor
    ATX
    Width
    12"
    Depth
    9.6"
    Miscellaneous
    Package Contents
    • S5512-LE Server Motherboard
    • 1 x User's Manual
    • 1 x Quick Ref. Guide
    • 1 x Installation CD
    • 1 x I/O Shield
    • 6 x SATA Signal Cables
    • 1 x USB2.0 Cable
    • 1 x I/O shield Installation Guide
    Certifications & Standards
    • FCC Class B
    • CE
    Environmentally Friendly
    Yes
    Environmental Compliance
  • China Restriction of Hazardous Substances (China RoHS)
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)

    • Specifications
