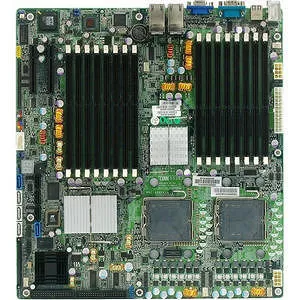

Tempest i5000PT (S5383) is aimed at delivering maximum performance to the 1U rackmount space. Supports dual Intel Xeon processors 5000/5100 series, (16) FBDIMM memory sockets, dual Gigabit Ethernet ports, dual PCI Express slots, and remote management and power management options, all in a 1U-centric layout.
About
Tempest i5000PT (S5383) is aimed at delivering maximum performance to the 1U rackmount space. Supports dual Intel Xeon processors 5000/5100 series, (16) FBDIMM memory sockets, dual Gigabit Ethernet ports, dual PCI Express slots, and remote management and power management options, all in a 1U-centric layout.
Specifications
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
S5383G2NR
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Tempest
Product Series
i5000PT
Product Model
(S5383)
Product Name
Tempest i5000PT (S5383) Server Motherboard
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
5000P
Total Processor Supported
2
Processor Technology
Hyper-Threading Technology
Processor Socket
Socket J LGA-771
Processor Supported
Xeon
Front Side Bus
Memory
Maximum Memory Supported
64 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Video
Onboard Video
On-board Video Chipset
Graphics Controller Manufacturer
ATI
Graphics Controller Model
ES1000
Graphics Controller Memory
16 MB
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Number of Total Expansion Slots
2
Total Number of PCI Express Slots
2
Number of PCI Express x8 Slots
2
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Serial Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
1
Number of SATA Interfaces
4
Number of SAS Interfaces
8
Total Number of Onboard USB Ports
2
Onboard LEDs Header
Yes
Physical Characteristics
Width
12"
Depth
13"
Miscellaneous
Package Contents
- Tempest i5000PT (S5383) Server Board
- 1 x 34-pin floppy drive cable
- 1 x Ultra-ATA-HD IDE cable
- 1 x COM Port cable
- 1 x 5_Pin x 2 USB cable
- 4 x SATA cable
- 2 x SATA Power Adapter
- 1 x I/O shielding
- 2 x CPU Heatsink
- 1 x TYAN Driver CD
- 1 x Tempest i5000PT User Manual
- 1 x Tempest i5000PT Quick Reference Guide
Additional Information
ROHS Compliant
Integrated SAS Controller:
- LSI 1068E SAS controller
- Supports Integrated Mirroring, Integrated Enhanced Mirroring, and Integrated Stripping
Chipsets:
- Intel 5000P
- Intel 6321ESB I/O Controller Hub
- Winbond 83627HF Super I/O chip
BIOS Features:
- Phoenix BIOS on 8Mbit Flash ROM
- Supports APM 1.2, ACPI 1.0b
- Serial Console Redirect
- PXE via Ethernet, USB device boot
- PnP, DMI 2.0, WfM 2.0 Power Management
- User-configurable H/W monitoring
- Auto-configuration of hard disk types
- Multiple boot options
- 48-bit LBA support
System Management:
- Winbond W83793G Hardware Monitoring IC
- CPU thermal & voltage monitor support; PECI circuit for "Woodcrest" processor thermal monitor
- Multiple 4-pin fan monitoring headers
- Infineon SLB9635 TPM
Supported Operating System:
- Windows 2000 Advanced Server SP4
- Windows Server 2003 Enterprise SP1 (32bit & EM64T)
- Red Hat Enterprise Linux 4 Update4
- Novell SuSE Linux Enterprise Server 10
Warranty
Limited Warranty
3 Year
