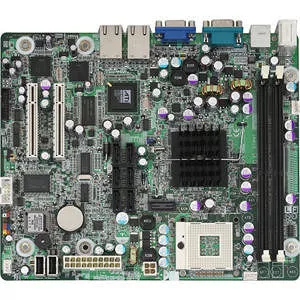

Excellent for entry-level server applications, the Toledo i3100 (S5207) is a conventional flex ATX server platform that integrated with a choice of Intel Core Duo, Core 2 Duo, & Intel Celeron M processors.
About
Excellent for entry-level server applications, the Toledo i3100 (S5207) is a conventional flex ATX server platform that integrated with a choice of Intel Core Duo, Core 2 Duo, & Intel Celeron M processors.
Specifications
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
S5207G2N
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Toledo
Product Series
i3100
Product Model
(S5207)
Product Name
Toledo i3100 (S5207) Server Motherboard
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
3100
Total Processor Supported
1
Processor Technology
Enhanced SpeedStep Technology
Processor Socket
Socket PGA-479
Processor Supported
Front Side Bus
64-bit Processing
Yes
Memory
Number of Memory Slots
2
Maximum Memory Supported
4 GB
Memory Standard
DDR2-400/PC2-3200
Memory Technology
DDR2 SDRAM
Memory Speed Supported
400 MHz
I/O Controller
Controller Type
Serial ATA/150
Video
Onboard Video
On-board Video Chipset
Graphics Controller Manufacturer
ATI
Graphics Controller Model
ES1000
Graphics Controller Memory
32 MB
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Number of Total Expansion Slots
2
Total Number of PCI Express Slots
2
Number of PCI Express x8 Slots
2
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Serial Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of SATA Interfaces
6
Total Number of Onboard USB Ports
1
Onboard LEDs Header
Yes
Physical Characteristics
Form Factor
Flex ATX
Width
9"
Depth
7.5"
Miscellaneous
Package Contents
- Toledo i3100 (S5207) Server Board
- 6 x SATA cables
- 3 x SATA Power Adapters
- 1 x I/O shielding
- 1 x TYAN Driver CD
- 1 x User's Manual
- 1 x Quick Reference Guide
Additional Information
BIOS:
- AMI BIOS with 8Mb flash ROM
- Supports ACPI
- Auto detection of memory size
- Auto configuration of SATA HD types
- Multiple boot options including PXE
- Power Management: S1, S3, S4 & S5
Warranty
Limited Warranty
3 Year
