TYN-S4989WG2NR-SI-00
MPN: S4989WG2NR-SI

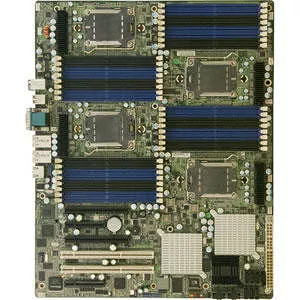

TYAN S4989WG2NR-SI Server Motherboard - NVIDIA nForce Professional 3600 Chipset - Socket F LGA-1207 - SSI MEB

Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
S4989WG2NR-SI
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Series
S4989-SI
Product Model
S4989WG2NR-SI
Product Name
S4989-SI Series S4989WG2NR-SI Server Motherboard
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
NVIDIA
Chipset Model
nForce Professional 3600
Total Processor Supported
4
Processor Technology
HyperTransport Technology
Processor Socket
Socket F LGA-1207
Processor Supported
  • Core 2 Extreme Quad-Core
  • Opteron Dual-Core
    • Front Side Bus
    3200 MHz
    64-bit Processing
    Yes
    Memory
    Number of Memory Slots
    32
    Maximum Memory Supported
    256 GB
    Memory Standard
  • DDR2-800/PC2-6400
  • DDR2-667/PC2-5300
  • DDR2-533/PC2-4200
    • Memory Technology
    DDR2 SDRAM
    Memory Speed Supported
  • 800 MHz
  • 667 MHz
  • 533 MHz
    • I/O Controller
    Controller Type
  • Serial Attached SCSI (SAS)
  • Serial ATA/300
    • RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
  • 0+1
  • 5
    • Video
    Onboard Video
    On-board Video Chipset
    Graphics Controller Manufacturer
    XGI
    Graphics Controller Model
    Z9s
    Graphics Controller Memory
    32 MB
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Number of Total Expansion Slots
    6
    Number of PCI-X Slots
    2
    Total Number of PCI Express Slots
    4
    Number of PCI Express x8 Slots
    2
    Number of PCI Express x16 Slots
    2
    Interfaces/Ports
    Total Number of USB Ports
    2
    Number of USB 2.0 Ports
    2
    Serial Port
    Yes
    VGA
    Yes
    Network (RJ-45)
    Yes
    PS/2 Port
    Yes
    Number of PS/2 Ports
    1
    Onboard Interfaces
    Number of SATA Interfaces
    6
    Number of SAS Interfaces
    2
    Total Number of Onboard USB Ports
    4
    Onboard LEDs Header
    Yes
    Physical Characteristics
    Form Factor
    SSI MEB
    Width
    16.2"
    Depth
    13"
    Miscellaneous
    Package Contents
    • S4989-SI Series S4989WG2NR-SI Server Board
    • 1 x I/O Shield
    • 4 x CPU Backplates
    • 6 x SATA signal Cables
    • 3 x SATA 1-to-2 Power Cables
    • 2 x Mini-SAS 1-to-4 Backplate Cables
    • 1 x User Manual
    • 1 x Quick Ref. Guide
    • 1 x Installation CD
    Additional Information

    BIOS:

    • AMI BIOS
    • 1MB ROM BIOS
    • Plug and Play (PnP)
    • PCI2.3
    • WfM2.0
    • SMBIOS2.3
    • PXE Boot
    • ACPI 2.0 Power Management
    • Power on Mode After Power Recovery
    • User-configurable H/W Monitoring
    • Auto-configurable of Hard Disk Types
    • Multiple Boot Options
    Environmentally Friendly
    Yes
    Warranty
    Limited Warranty
    3 Year
