MPN: S3115GM2N

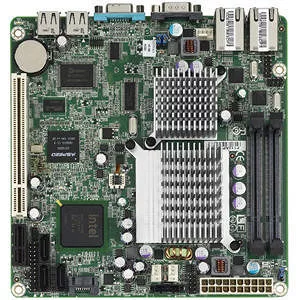

TYAN S3115GM2N Server Motherboard - Intel 945GC Express Chipset - Socket PGA-479 - Mini ITX
Highlights
Specifications
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
S3115GM2N
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Series
S3115
Product Model
S3115GM2N
Product Name
S3115 Series S3115GM2N Server Board
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
945GC Express
Total Processor Supported
1
Processor Socket
Socket PGA-479
Processor Supported
Atom Dual-Core
Front Side Bus
533 MHz
64-bit Processing
Yes
Memory
Number of Memory Slots
2
Maximum Memory Supported
2 GB
Memory Standard
DDR2-533/PC2-4200
Memory Technology
DDR2 SDRAM
Memory Speed Supported
533 MHz
I/O Controller
Controller Type
Serial ATA/300
Video
Onboard Video
On-board Video Chipset
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2050
Graphics Controller Memory
8 MB
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Number of Total Expansion Slots
3
Number of PCI Slots
1
Total Number of PCI Express Slots
1
Number of PCI Express x1 Slots
1
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Serial Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of SATA Interfaces
4
Total Number of Onboard USB Ports
2
Onboard LEDs Header
Yes
Physical Characteristics
Form Factor
Mini ITX
Width
6.6"
Depth
6.7"
