MPN: S2927A2NRF-E

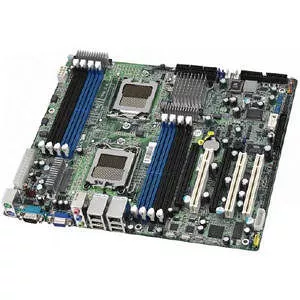

TYAN S2927A2NRF-E Thunder (S2927-E) Server Motherboard - NVIDIA Chipset - Socket F LGA-1207 - ATX
Highlights
Specifications
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
S2927A2NRF-E
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Thunder
Product Series
n3600B
Product Model
(S2927-E)
Product Name
Thunder n3600B (S2927-E) Server Motherboard
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
NVIDIA
Chipset Model
NFP 3600
Total Processor Supported
2
Processor Technology
HyperTransport Technology
Processor Socket
Socket F LGA-1207
Processor Supported
Opteron
HyperTransport Speed (MHz)
1000
Memory
Number of Memory Slots
8
Maximum Memory Supported
32 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Audio
Sound Controller Manufacturer
Realtek
Sound Controller Model
ALC262
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Number of Total Expansion Slots
5
Number of PCI Slots
3
Total Number of PCI Express Slots
2
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Serial Port
Yes
Audio Line In
Yes
Audio Line Out
Yes
Microphone Port
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
1
Number of SATA Interfaces
6
Total Number of Onboard USB Ports
2
Total Number of Onboard FireWire/i.LINK Ports
1
Onboard LEDs Header
Yes
Physical Characteristics
Form Factor
ATX
Width
10.2"
Depth
12"
Miscellaneous
Additional Information
Dual Channel memory supported
Chipsets:
- nVIDIA NFP3600
- SMSC SCH5017
BIOS Features:
- AMI BIOS 8Mbit Flash
- Supports ACPI 2.0
- PnP
- DMI2.0
- WfM2.0 Power Management
Server Management:
- Renesas H8S2167 BMC Controller
- BT, KCS, Logging support
- IPMI-over-LAN
- Remote power on/off and reset
Warranty
Limited Warranty
3 Year
