Highlights:
  • Processor Socket: Socket F (1207)
  • Total Processor Supported: 2
  • Memory Technology: DDR2 SDRAM
  • Maximum Memory: 64 GB
Contact sales for pricing

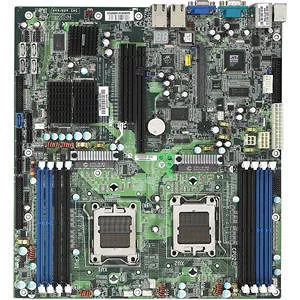

Brimming with performance, built with power and efficiency in mind, the 1U-centric Thunder n3600R (S2912-E) offers a complete platform for space-efficient rackmount systems. Supporting dual AMD Opteron 2000 series processors (dual-core or quad-core), the S2912-E also features dual Gigabit Ethernet ports, PCI Express and HTX Pro connectors, and OPMA support for KVM features. Standard features include video, SATA2/3G, USB 2.0, and DDR2 support.

General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
S2912G2NR-E
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Thunder
Product Series
n3600R
Product Model
(S2912-E)
Product Name
Thunder n3600R (S2912-E) Server Motherboard
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
NVIDIA
Total Processor Supported
2
Processor Technology
HyperTransport Technology
Processor Socket
Socket F (1207)
Processor Supported
Opteron
HyperTransport Speed
1000 MHz
Memory
Number of Memory Slots
8
Maximum Memory
64 GB
Memory Standard
  • DDR2-667/PC2-5300
  • DDR2-533/PC2-4200
  • DDR2-400/PC2-3200
  • Memory Technology
    DDR2 SDRAM
    Memory Speed Supported
  • 667 MHz
  • 533 MHz
  • 400 MHz
  • I/O Controller
    Controller Type
  • Floppy Controller
  • Serial ATA/300
  • Ultra ATA/133 (ATA-7)
  • Video
    Onboard Video
    On-board Video Chipset
    Graphics Controller Manufacturer
    ATI
    Graphics Controller Model
    ES1000
    Graphics Controller Memory
    32 MB
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Number of Total Expansion Slots
    4
    Total Number of PCI Express Slots
    2
    Number of PCI Express x16 Slots
    2
    Interfaces/Ports
    Total Number of USB Ports
    2
    Number of USB 2.0 Ports
    2
    Serial Port
    Yes
    VGA
    Yes
    Network (RJ-45)
    Yes
    Onboard Interfaces
    Number of IDE Interfaces
    1
    Number of SATA Interfaces
    6
    Total Number of Onboard USB Ports
    6
    Onboard LEDs Header
    Yes
    Physical Characteristics
    Form Factor
    Extended ATX
    Width
    13"
    Depth
    12"
    Miscellaneous
    Additional Information

    System Management:

    • 6 x 4-pin fan headers
    • CPU temperature & voltage monitor support
    • 1 x 2-pin chassis intrusion header
    • Watchdog timer support

    BIOS:

    • Phoenix BIOS on 8Mbit LPC Flash ROM
    • Support ACPI (S0, S1, S4, S5)
    • Serial Console Redirect
    • PXE via Ethernet
    • USB device boot
    • PnP
    • DMI 2.0
    • WfM 2.0 Power Management
    • Multiple boot options

    Server Management:

    • OPMA card support M3
    Warranty
    Limited Warranty
    3 Year
