TYN-P3301-00
MPN: P3301

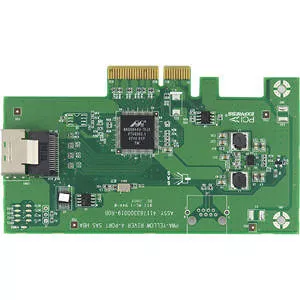

TYAN P3301 4-port SAS RAID Controller

Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
P3301
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Model
P3301
Product Name
P3301 4-port SAS RAID Controller
Product Type
SAS Controller
Technical Information
Host Interface
PCI Express x4
Controller Type
Serial ATA/300
RAID Supported
Yes
RAID Levels
  • 0
  • 1
  • 10
  • JBOD
    • Interfaces/Ports
    Total Number of SAS Ports
    1
    Number of SAS Ports (Internal)
    1
    SAS Connector Details
    1 x SFF-8087
    Physical Characteristics
    Height
    2.5"
    Width
    4.8"
    Form Factor
    Plug-in Card
    Card Height
    Low-profile
    Miscellaneous
    Package Contents
    • P3301 4-port SAS RAID Controller
    • Quick Reference Guide
    • Installation CD
    • Low profile Bracket
    Compatibility
    • Tyan S5501 Motherboard
    • Tyan S7002 Motherboard
    • Tyan S7010 Motherboard
    • Tyan S7012 Motherboard
    • Tyan S7016 Motherboard
    • Tyan S8005 Motherboard
    • Tyan S8212 Motherboard
    • Tyan GT24B5501 Barebones Server
    • Tyan YR190B7017 Barebones Server
    Environmentally Friendly
    Yes
    Warranty
    Limited Warranty
    3 Year
