TYN-B8252T75V8E4HR-2T-00
MPN: B8252T75V8E4HR-2T

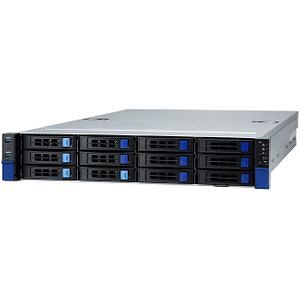

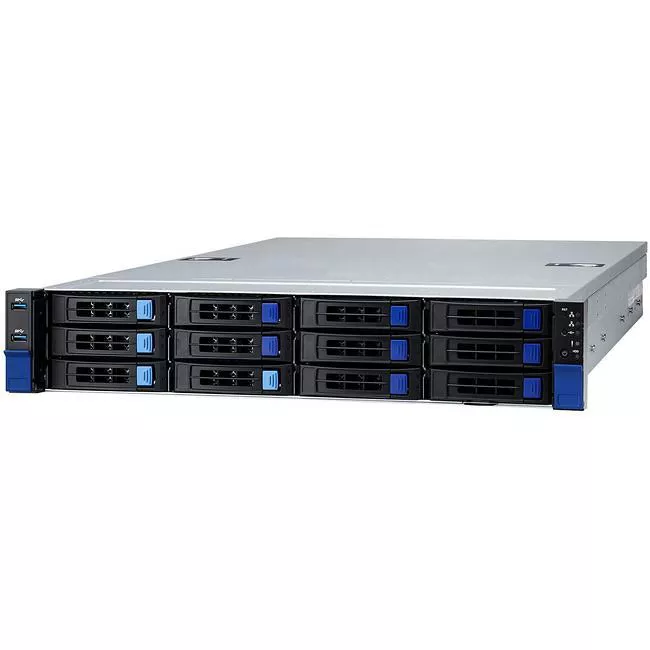

TYAN B8252T75V8E4HR-2T TS75-B8252 2U Rack Barebone - SoC - 2X AMD Socket SP3

Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B8252T75V8E4HR-2T
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Transport HX
Product Model
TS75-B8252
Product Name
Transport HX TS75-B8252 2U2S HPC Server
Packaged Quantity
1
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket SP3
Processor Supported
EPYC
64-bit Processing
Yes
Memory
Maximum Memory Supported
8 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-3200/PC4-25600
Number of Total Memory Slots
32
Controllers
Controller Type
  • Serial ATA/600
  • 12Gb/s SAS
    • RAID Supported
    No
    Display & Graphics
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2500
    Network & Communication
    Ethernet Technology
  • 10 Gigabit Ethernet
  • Gigabit Ethernet
    • I/O Expansions
    Number of Total Expansion Bays
    12
    Total Number of Expansion Slots
    5.0
    Number of PCI Express x8 Slots
    1
    Number of PCI Express x16 Slots
    4
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 3.1 Gen 1 Ports
    4
    Number of SATA Interfaces
    12
    Operating System
    Operating System Supported
  • Windows Server 2019 Standard x64
  • Red Hat Enterprise Linux 7.6 x64
    • Power Description
    Input Voltage
  • 120 V AC
  • 230 V AC
    • Number of Power Supplies Installed
    2
    Maximum Power Supply Wattage
    1600 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    2U
    Height
    3.4"
    Width
    17.3"
    Depth
    29.6"
    Weight (Approximate)
    41.89 lb
    Miscellaneous
    Package Contents
    • Transport HX TS75B8252 (B8252T75V8E4HR-2T)
    • 1 x Quick Installation Guide
    Environmentally Friendly
    Yes
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty
    3 Year

    Specifications
