TYN-B8026G62FE10HR-00
MPN: B8026G62FE10HR

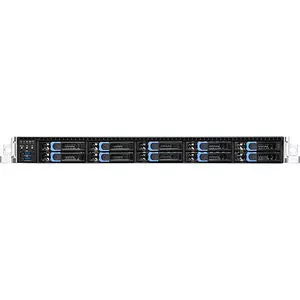

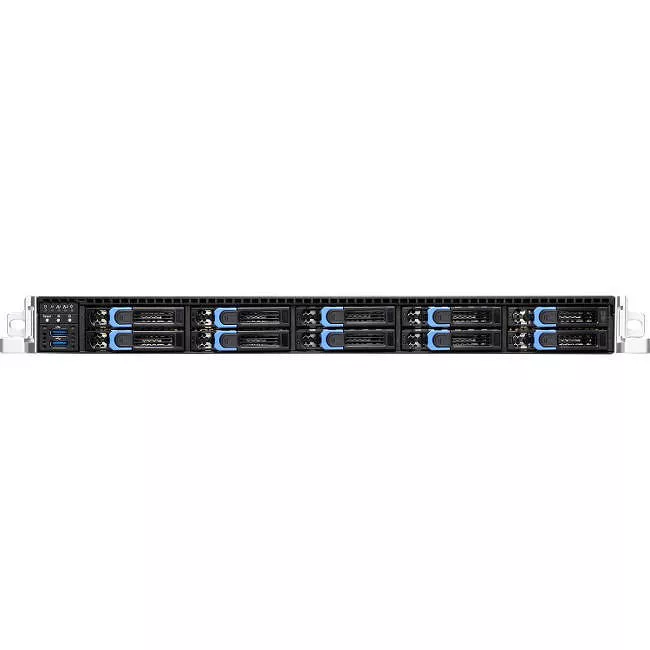

TYAN B8026G62FE10HR Transport SX GT62F-B8026 1U Rackmount Barebone - AMD - Socket SP3


Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B8026G62FE10HR
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Transport SX
Product Model
GT62F-B8026
Product Name
Transport SX GT62F-B8026
Packaged Quantity
1
Product Type
Barebone System
Processor
Number of Processors Supported
1
Processor Socket
Socket SP3
Processor Supported
EPYC
64-bit Processing
Yes
Chipset
Chipset Manufacturer
AMD
Memory
Maximum Memory Supported
1 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Total Number of Memory Slots
16.0
Controllers
Controller Type
Serial ATA
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Graphics Memory Capacity
32 MB
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
10
Total Number of Expansion Slots
2.0
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 3.0 Ports
4
Operating System
Operating System Supported
  • Windows Server 2012 x64
  • Windows 10 Enterprise x64
  • Windows Server 2016 x64
  • Windows 8.1 Enterprise x64
  • Red Hat Enterprise Linux 6.5 x64
  • Red Hat Enterprise Linux 7.2 x64
  • Red Hat Enterprise linux 7.3 x64
  • Red Hat Enterprise linux 7.4 x64
  • CentOS 7.2 x64
  • CentOS 7.3 x64
  • Ubuntu 16.04 LTS x64
  • Ubuntu 17.04 x64
  • SuSE Linux Enterprise Server 11 x64
  • SuSE Linux Enterprise Server 12 x64
  • Red Hat Fedora Core
  • Power Description
    Input Voltage
  • 120 V AC
  • 230 V AC
  • Number of Power Supplies Installed
    2
    Maximum Power Supply Wattage
    650 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    1U
    Height
    1.7"
    Width
    17.2"
    Depth
    24.6"
    Weight (Approximate)
    23.15 lb
    Miscellaneous
    Package Contents
    • Transport SX GT62F-B8026
    • 1 x Quick Installation Guide
    • 1 x TYAN Device Driver CD
    Environmentally Friendly
    Yes
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty
    3 Year
