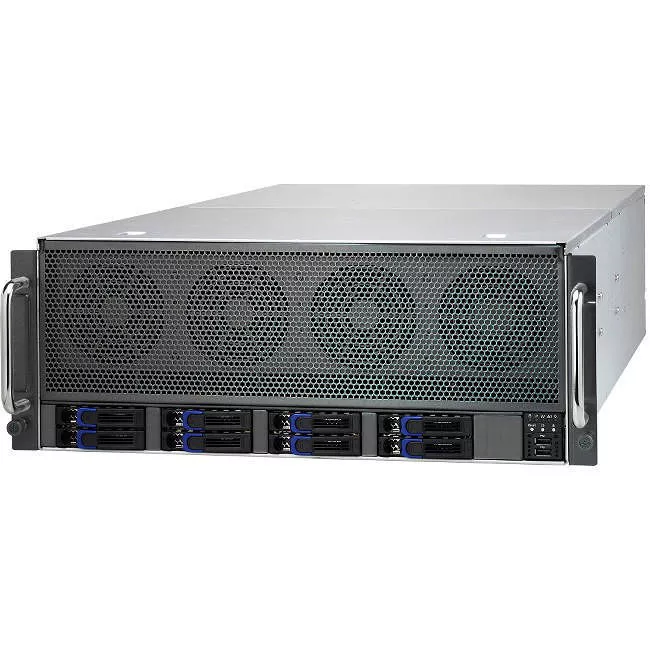

TYN-B7922F76U8HR-2T-00
MPN: B7922F76U8HR-2T

TYAN B7922F76U8HR-2T FT76B7922 4U Rackmount Barebone -Intel C602-J Chipset - 4x Socket R1 LGA-2011


Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B7922F76U8HR-2T
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Model
FT76B7922
Product Name
FT76B7922 Barebone System
Product Type
Barebone System
Processor
Number of Processors Supported
4
Processor Socket
Socket R1 LGA-2011
Processor Supported
Xeon
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C602-J
Memory
Maximum Memory Supported
12 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-1866/PC4-14900
Total Number of Memory Slots
96.0
Controllers
Controller Type
  • Serial ATA/600
  • 12Gb/s SAS
  • RAID Supported
    Yes
    Display & Graphics
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2400
    Graphics Memory Capacity
    16 MB
    Network & Communication
    Ethernet Technology
    10 Gigabit Ethernet
    I/O Expansions
    Number of Total Expansion Bays
    8
    Total Number of Expansion Slots
    13.0
    Number of PCI Express x8 Slots
    13
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of SATA Interfaces
    2
    Operating System
    Operating System Supported
  • Windows Server 2008 R2 x64
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Red Hat Enterprise Linux 6.5 x64
  • Red Hat Enterprise Linux 7.1 x64
  • Red Hat Enterprise linux 7.3 x64
  • SuSE Linux Enterprise Server 12 x64
  • Ubuntu 14.04 LTS x64
  • Ubuntu 15.10 x64
  • Debian Linux 8.1.0 x64
  • Power Description
    Input Voltage
  • 120 V AC
  • 230 V AC
  • Number of Power Supplies Installed
    4
    Maximum Power Supply Wattage
    4800 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    4U
    Height
    6.9"
    Width
    17.2"
    Depth
    29.9"
    Miscellaneous
    Package Contents
    • FT76B7922 Barebone System
    • 1 x Quick Installation Guide
    • 1 x TYAN Device Driver CD
    • 1 x P3250USR-8I LSI SAS Mezz Card
    Environmentally Friendly
    Yes
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty
    3 Year
