MPN: B7119F77V14HR-2T-N

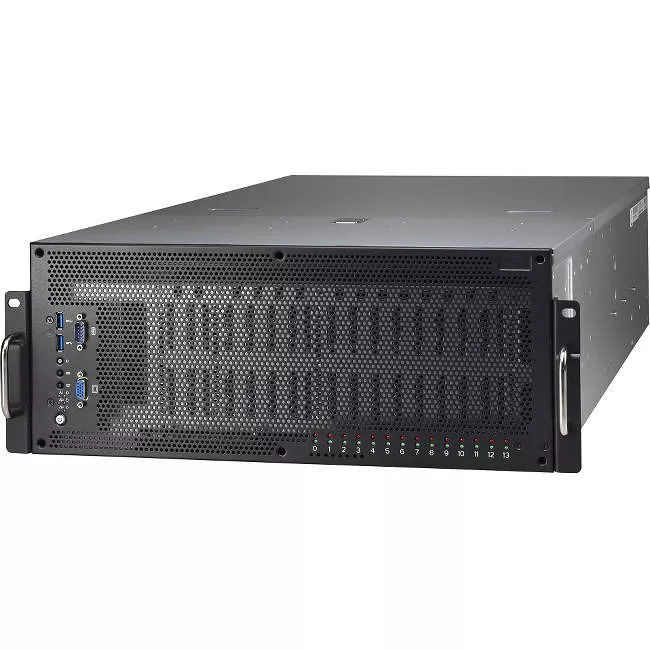

TYAN B7119F77V14HR-2T-N HX FA77-B7119 4U Rackmount Barebone - 10x GPU - Intel C621 - LGA-3647
Highlights
Specifications
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B7119F77V14HR-2T-N
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Thunder HX
Product Model
FA77-B7119
Product Name
Thunder HX FA77B7119 (B7119F77V14HR-2T-N)
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket P LGA-3647
Processor Supported
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory Supported
3 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
24
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Graphics Memory Capacity
32 MB
Network & Communication
Ethernet Technology
I/O Expansions
Number of Total Expansion Bays
14
Number of Internal 2.5" Bays
14
Number of Total Expansion Slots
13
Number of PCI Express x16 Slots
13
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 3.0 Ports
4
Number of SATA Interfaces
10
Operating System
Operating System Supported
Power Description
Input Voltage
Number of Power Supplies Installed
4
Maximum Power Supply Wattage
4800 W
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
4U
Height
6.9"
Width
17.2"
Depth
30.3"
Weight (Approximate)
60.63 lb
Miscellaneous
Package Contents
- Thunder HX FA77B7119 (B7119F77V14HR-2T-N)
- 1 x Quick Installation Guide
- 1 x TYAN Device Driver CD
Environmentally Friendly
Yes
Environmental Certification
RoHS-6
Warranty
Limited Warranty
3 Year
