MPN: B7109F77DV4HR-8X-2T-F

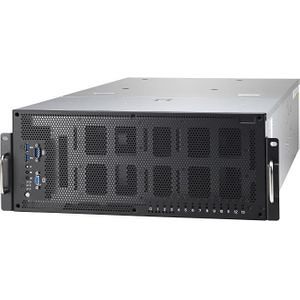

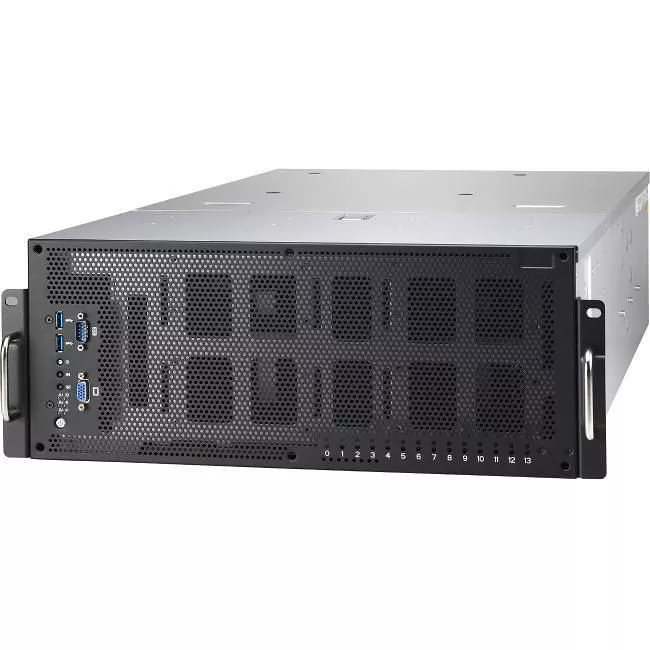

TYAN B7109F77DV4HR-8X-2T-F 4U Rack Barebone - Intel C621 Chipset - 2X Socket F LGA3647
Highlights
Specifications
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B7109F77DV4HR-8X-2T-F
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Thunder HX
Product Model
FT77DB7109
Product Name
Thunder HX FT77DB7109 (B7109F77DV4HR-8X-2T-F)
Packaged Quantity
1
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket P LGA-3647
Processor Supported
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory Supported
3 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Total Number of Memory Slots
24.0
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Graphics Memory Capacity
32 MB
Network & Communication
Ethernet Technology
I/O Expansions
Number of Total Expansion Bays
4
Number of 3.5" Bays
4
Total Number of Expansion Slots
17.0
Number of PCI Express x8 Slots
16
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 3.0 Ports
2
Number of SATA Interfaces
4
Operating System
Operating System Supported
Power Description
Input Voltage
Number of Power Supplies Installed
3
Maximum Power Supply Wattage
3200 W
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
4U
Height
6.9"
Width
17.2"
Depth
30.3"
Weight (Approximate)
57.32 lb
Miscellaneous
Package Contents
- Thunder HX FT77DB7109 (B7109F77DV4HR-8X-2T-F)
- 1 x Quick Installation Guide
- 1 x TYAN Device Driver CD
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
3 Year
