TYAN B7109F77DV10E4HR-2T-N Barebone 4U - 8x GPU - C621 Chipset - Socket R LGA3647 -
- Number of Processors Supported: 2
- Processor Socket: Socket P LGA-3647
- Maximum Memory: 3 TB
- Memory Standard: DDR4-2666/PC4-21300

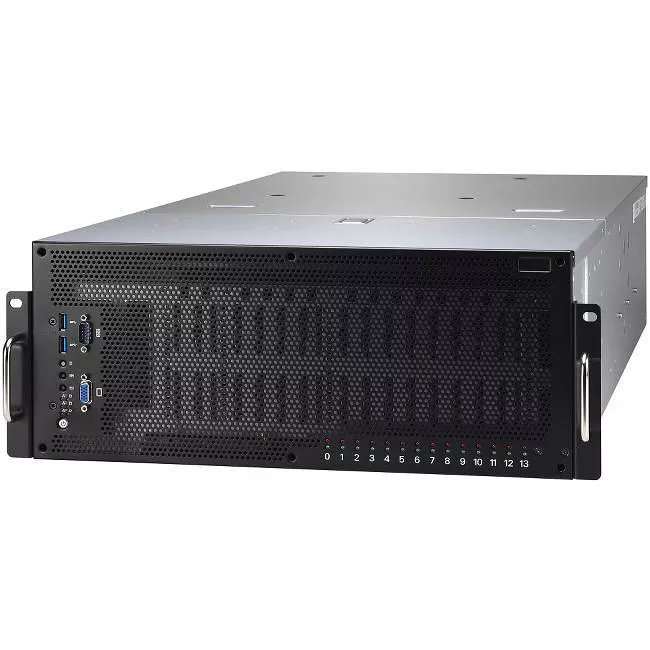

Tyan Thunder HX FT77D-B7109 Dual Root Complex 8 GPU Server
The Thunder HX FT77D-B7109 is the fifth generation of Tyan's 4U 8GPU server platform based on the new Intel Xeon Scalable Processor Family. It builds upon the success of previous generations by adding additional features that our customers have asked for over the years. These enhancements include support for an internal storage mezzanine slot, allowing the deployment of SAS drives without consuming precious PCIe slots in the rear that would otherwise be used by GPU cards. Tyan's engineers also found additional space next to the 8 GPU cards in the server for a 9th PCIe x16 slot, ideal for high speed networking or NVMe retimer deployment.
As a dual root complex GPU server, the B7109 deploys a pair of Xeon Scalable Processors with an even split of GPU cards between the two. The motherboard deploys a set of four PLX PEX8747 PCIe switch chips to provide the connectivity for the 8 GPU card slots. The B7109F77DV14HR-2T-NF SKU adds support for Xeon processors with integrated Intel Omni-Path 100 gigabit networking fabric.
Xeon Scalable Processor Family
The new Xeon Scalable Processor is Intel's largest advancement in a decade and brings many new features and capabilities:
- Up to 28 CPU cores per socket
- 50% Increased memory bandwidth with 6 memory channels per socket
- Memory speeds up to DDR4-2667 (depending on CPU SKU)
- No slowdown in memory speed when deploying 2 DIMMs per channel
- Increased PCIe connectivity to 48 PCIe Gen3.0 lanes per CPU socket
- Optional Integrated Intel Omni-Path Architecture Host Fabric Interface
- Native support for up to 14 SATA ports
- New Ultra Path Interconnect
- New Advanced Vector Extensions 512 (AVX-512)
Support for 8GPUs + Single-Wide x16 slot
The new Xeon Scalable Processor Family increases the amount of PCIe lanes available in a system. The FT77D-B7109 takes full advantage of this and increases total expansion capability from its predecessor, adding a 17th slot to the rear of the chassis. This allows a single-wide x16 card to be installed next to a full compliment of 8 double-wide GPU cards, and is ideal for NVME deployment or high speed networking like 100 Gigabit EDR Infiniband, 100 Gigabit Ethernet, or 100 Gigabit Intel Omni-Path fabric.
Optional Integrated Intel® Omni-Path Architecture (Intel® OPA) Host Fabric Interface
The FT77D-B7109 has optional support for the Intel Xeon Scalable Processor Family's newest member, the Skylake-F CPU with integrated 100 Gigabit Omni-Path networking fabric. The B7109F77DV14HR-2T-NF SKU supports dual socket SKL-F CPUs for a total of 200Gb/s fabric connectivity.
Integrated Intel® Omni-Path Architecture (Intel® OPA) Host Fabric Interface is an end-to-end high-bandwidth, low-latency fabric that features optimized performance and eases the deployment of HPC clusters.
Native Active/Passive GPU support
The mechanical design of the FT77D chassis allows expansion cards to fully utilize the 4U enclosure, allowing the FT77D-B7109 to deploy the widest range of accelerator cards in the industry without requiring a specialized domed lid for the power connectors of active GPU cards.
