TYN-B7106G62HE10HR-00
MPN: B7106G62HE10HR

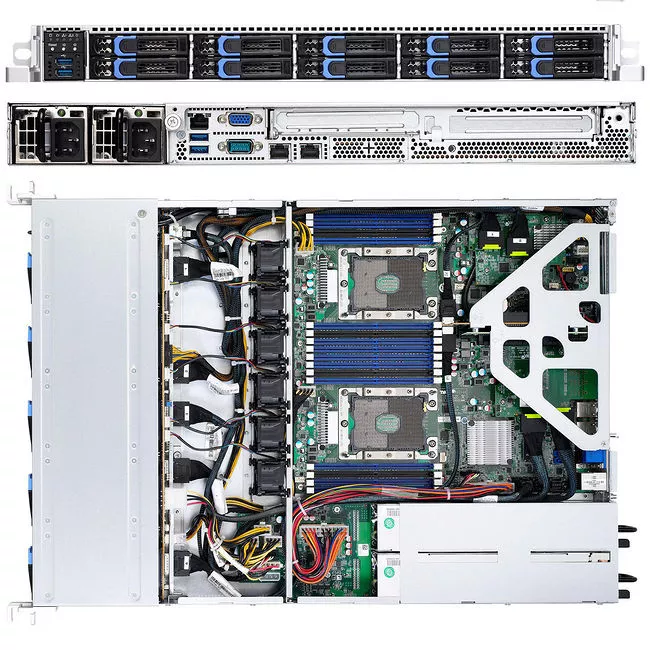

TYAN B7106G62HE10HR Thunder SX GT62H-B7106 1U Rack Barebone -Intel C621 Chipset -2X Socket LGA3647

Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B7106G62HE10HR
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Thunder SX
Product Series
GT62H
Product Model
GT62H-B7106
Product Name
Thunder SX GT62H-B7106
Packaged Quantity
1
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket P LGA-3647
Processor Supported
  • Xeon Platinum
  • Xeon Gold
  • Xeon Silver
  • Xeon Bronze
    • 64-bit Processing
    Yes
    Chipset
    Chipset Manufacturer
    Intel
    Chipset Model
    C621
    Memory
    Maximum Memory Supported
    1 TB
    Memory Technology
    DDR4 SDRAM
    Memory Standard
    DDR4-2666/PC4-21300
    Number of Total Memory Slots
    16
    Controllers
    Controller Type
    Serial ATA/600
    RAID Supported
    Yes
    Display & Graphics
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2500
    Graphics Memory Capacity
    32 MB
    Network & Communication
    Ethernet Technology
    Gigabit Ethernet
    I/O Expansions
    Number of Total Expansion Bays
    10
    Number of Internal 2.5" Bays
    10
    Number of Total Expansion Slots
    2
    Number of PCI Express x16 Slots
    2
    Interfaces/Ports
    Number of USB 3.0 Ports
    3
    Power Description
    Input Voltage
  • 120 V AC
  • 230 V AC
    • Number of Power Supplies Installed
    2
    Maximum Power Supply Wattage
    800 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    1U
    Height
    1.7"
    Width
    17.2"
    Depth
    24.6"
    Weight (Approximate)
    23.15 lb
    Miscellaneous
    Package Contents
    • Thunder SX GT62H-B7106
    • 1 x Quick Installation Guide
    Environmentally Friendly
    Yes
    Warranty
    Limited Warranty
    3 Year
