MPN: B7102T76V12HR-2T-G

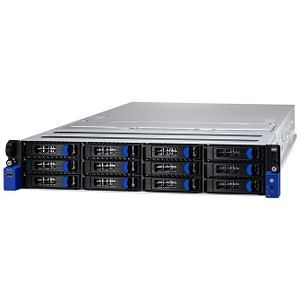

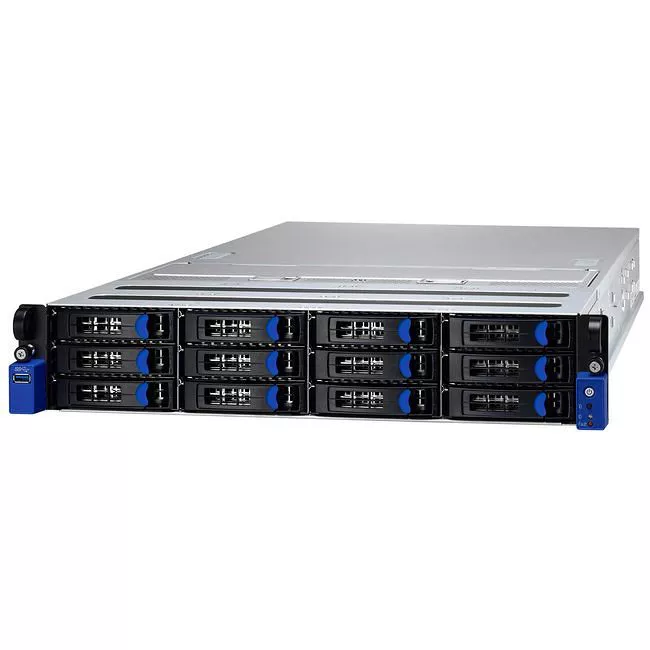

TYAN B7102T76V12HR-2T-G Thunder SX 2U Rack Barebone - 2x GPU - Intel C621 Chipset - LGA-3647
Highlights
Specifications
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B7102T76V12HR-2T-G
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Thunder SX
Product Model
TN76B7102
Product Name
Thunder SX TN76B7102 (B7102T76V12HR-2T-G)
Packaged Quantity
1
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket P LGA-3647
Processor Supported
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory Supported
3 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Total Number of Memory Slots
24.0
Controllers
Controller Type
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Graphics Memory Capacity
32 MB
Network & Communication
Ethernet Technology
10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
12
Number of 3.5" Bays
12
Total Number of Expansion Slots
5.0
Number of PCI Express x8 Slots
2
Number of PCI Express x16 Slots
3
Interfaces/Ports
Total Number of USB Ports
3
Number of USB 3.0 Ports
3
Number of SATA Interfaces
12
Operating System
Operating System Supported
Power Description
Input Voltage
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
1200 W
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
2U
Height
3.4"
Width
17.2"
Depth
29.9"
Weight (Approximate)
61.73 lb
Miscellaneous
Package Contents
- Thunder SX TN76B7102 (B7102T76V12HR-2T-G)
- 1 x Quick Installation Guide
- 1 x TYAN Device Driver CD
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
3 Year
