MPN: B7102G75BV6E4HR-2T-HE

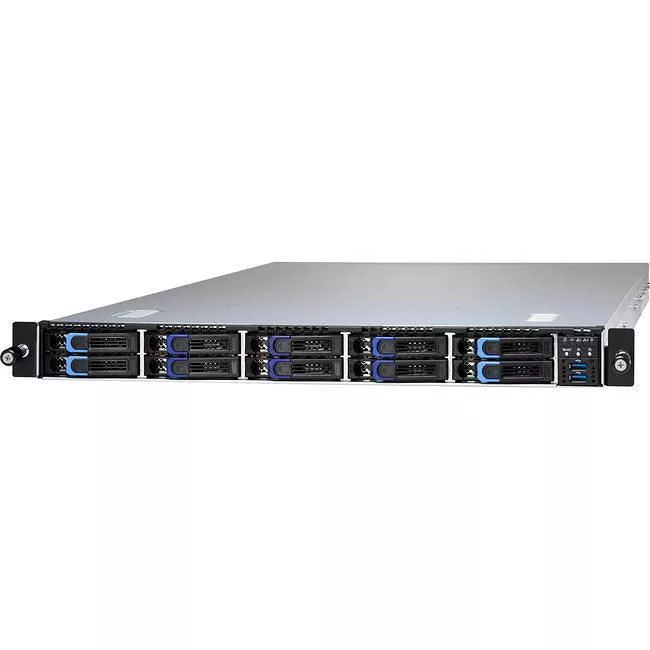

TYAN B7102G75BV6E4HR-2T-HE 1U Rack Barebone - Intel C621 Chipset - 2X Socket LGA3647
Highlights
Specifications
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B7102G75BV6E4HR-2T-HE
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Thunder CX
Product Model
GT75B-B7102
Product Name
Thunder CX GT75BB7102 (B7102G75BV6E4HR-2T-HE)
Packaged Quantity
1
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket P LGA-3647
Processor Supported
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory Supported
3 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
24
Controllers
Controller Type
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Graphics Memory Capacity
32 MB
Network & Communication
Ethernet Technology
10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
10
Total Number of Expansion Slots
4.0
Number of PCI Express x8 Slots
2
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 3.0 Ports
4
Operating System
Operating System Supported
Power Description
Input Voltage
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
800 W
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
29.7"
Weight (Approximate)
38.58 lb
Miscellaneous
Package Contents
- Thunder CX GT75BB7102 (B7102G75BV6E4HR-2T-HE)
- 1 x Quick Installation Guide
- 1 x TYAN Device Driver CD
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
3 Year
