MPN: B7081G80V4HR-2T-N

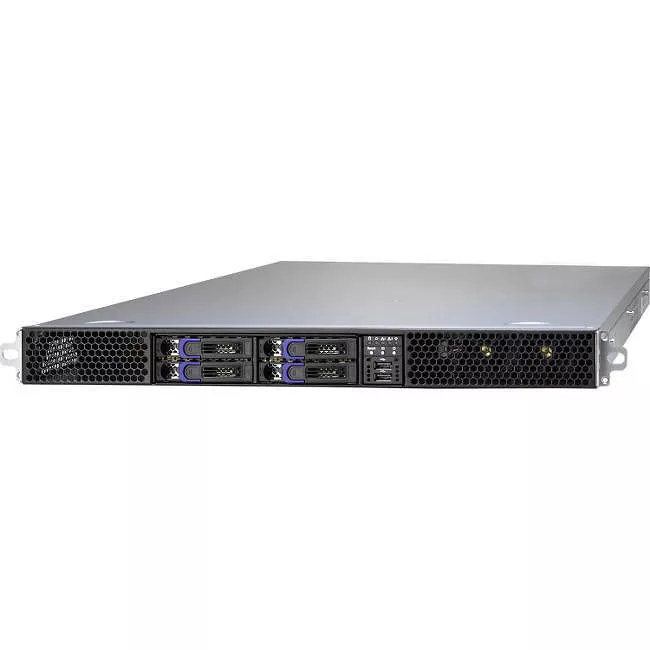

TYAN B7081G80V4HR-2T-N 1U Rackmount Barebone - 3x GPU - Intel C612 Chipset Socket R LGA-2011
Highlights
Specifications
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B7081G80V4HR-2T-N
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Model
GA80-B7081
Product Name
GA80-B7081 Barebone System
Packaged Quantity
1
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket R3 LGA-2011
Processor Supported
Xeon
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C612
Memory
Maximum Memory Supported
2 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2400/PC4-19200
Number of Total Memory Slots
16
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Graphics Memory Capacity
16 MB
Network & Communication
Ethernet Technology
I/O Expansions
Number of Total Expansion Bays
4
Number of Internal 2.5" Bays
4
Number of Total Expansion Slots
4
Number of PCI Express x8 Slots
1
Number of PCI Express x16 Slots
3
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 3.0 Ports
2
Number of SATA Interfaces
4
Operating System
Operating System Supported
Power Description
Input Voltage
Number of Power Supplies Installed
1
Maximum Power Supply Wattage
1600 W
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.3"
Depth
31.5"
Weight (Approximate)
38.58 lb
Miscellaneous
Package Contents
- GA80-B7081 Barebone System
- 1 x Quick Installation Guide
- 1 x TYAN Device Driver CD
Environmentally Friendly
Yes
Warranty
Limited Warranty
3 Year
