TYN-B7071T80V8HR-N-00
MPN: B7071T80V8HR-N

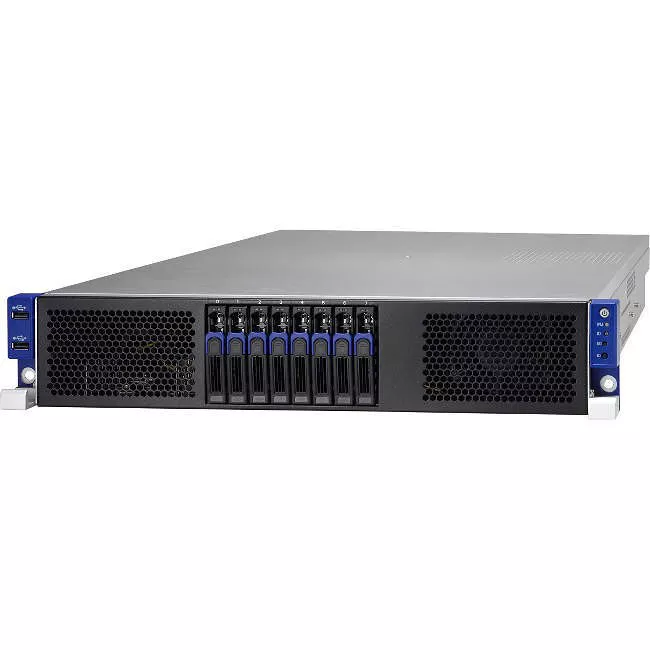

TYAN B7071T80V8HR-N TA80-B7071 2U RM Barebone - 4x GPU - Intel C612 Chipset - LGA-2011


Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B7071T80V8HR-N
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Model
TA80-B7071
Product Name
TA80-B7071 Barebone System
Packaged Quantity
1
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket R LGA-2011
Processor Supported
Xeon
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C612
Memory
Maximum Memory Supported
2 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2400/PC4-19200
Total Number of Memory Slots
16.0
Controllers
Controller Type
  • Serial ATA/600
  • Serial Attached SCSI (SAS)
  • RAID Supported
    Yes
    Display & Graphics
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2400
    Network & Communication
    Ethernet Technology
    Gigabit Ethernet
    I/O Expansions
    Number of Total Expansion Bays
    10
    Total Number of Expansion Slots
    5.0
    Number of PCI Express x16 Slots
    5
    Interfaces/Ports
    Total Number of USB Ports
    5
    Number of USB 3.0 Ports
    3
    Operating System
    Operating System Supported
  • Windows 7 x64
  • Windows 8 Pro x64
  • Windows 8.1 Pro x64
  • Windows Server 2008 R2 x64
  • Windows Server 2012 R2
  • Red Hat Enterprise Linux 6.5 x64
  • Red Hat Enterprise Linux 7.0 x64
  • SuSE Linux Enterprise Server 11 x64
  • SuSE Linux Enterprise Server 12 x64
  • Ubuntu 14.04 LTS x64
  • Ubuntu 13.10 x64
  • Power Description
    Input Voltage
    230 V AC
    Number of Power Supplies Installed
    2
    Maximum Power Supply Wattage
    1600 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    2U
    Height
    3.4"
    Width
    17.3"
    Depth
    30.7"
    Miscellaneous
    Package Contents
    • TA80-B7071 Barebone System
    • 1 x Quick Installation Guide
    • 1 x TYAN installation CD
    Environmentally Friendly
    Yes
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty
    3 Year
