Bring your enterprise to the future of server technology! TYAN server solutions offer industry-leading form factors and the features required to build best-in-class server systems to meet your requirements. Aggressively-priced and specifically-engineered for a wide range of applications, TYAN barebones servers and server chassis enclosures provide OEMs, VARs and S/Is with simplified, cost-effective components and solutions for building robust, feature-rich servers.
See More
SPECIFICATIONS
Specifications

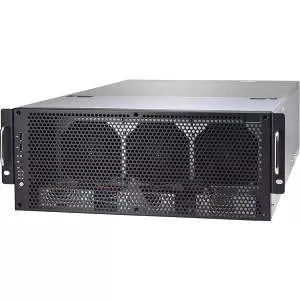

- Mfr Part Number: B7059F77AV6R
- Features:
- This model supports Nvdia GTX Graphic Card
- Motherboard: S7059GM2NR
- Processor: Dual LGA2011
- Supports Intel Xeon E5-2600/E5-2600 v2 Series Processors
- QPI up to 8.0 GT/s
- Supports up to 150W TDP
- Chipset: Intel C602
- Memory: 24x DDR3-1866/ 1600/ 1333/ 1066 DIMM Slots, Quad Channel, ECC, Supports up to 192GB Unbuffered Memory or 384GB Registered Memory or 768GB Load Reduced Memory
- Slots: 8x PCI-Express 3.0 x16 Slots, 2x PCI-Express 3.0 x8 Slots (one for mezzanine card), 3x PCI-Express 2.0 x1 Slots, 1x PCI 32-bit Slot
- SATA: 2x SATA3 Ports, 4x SATA2 Ports (4 from 1x Mini-SAS), Support RAID 0, 1, 5, 10
- SAS: 1xMini-SAS Connector (4-ports), Support RAID 0, 1, 5, 10
- Video: Aspeed AST2300 Graphics
- LAN: Intel I350-BT2 Gigabit Ethernet Controller (1 port shared with IPMI)
- Drive Bays: 6x 2.5" or 4x 3.5" SATA3/SATA2 HDDs
- Ports: 2x USB Ports, 1x VGA Port, 2x RJ45 LAN Ports (1 port shared with IPMI)
- Form Factor: 4U Rackmount
- Power Supply: 2400W 80 PLUS Platinum Certified (2+1) Hot-swap Power Supply; AC Input - 100-127V / 200-240V
- System Cooling: (5+1)x 120mm Hot-swap Fans
- Front Panel:
- Buttons: RST, ID, PWR w/ LED
- LEDs: HDD, 2x LAN, ID, IPMI/Warning
- Dimensions (WxDxH): 17.24 x 30.31 x 6.93 inch / 438.0 x 770.0 x 176.0 mm
- Gross Weight: 35.0 kg
- RoHS Compliant
