MPN: B5630G62FV10HR

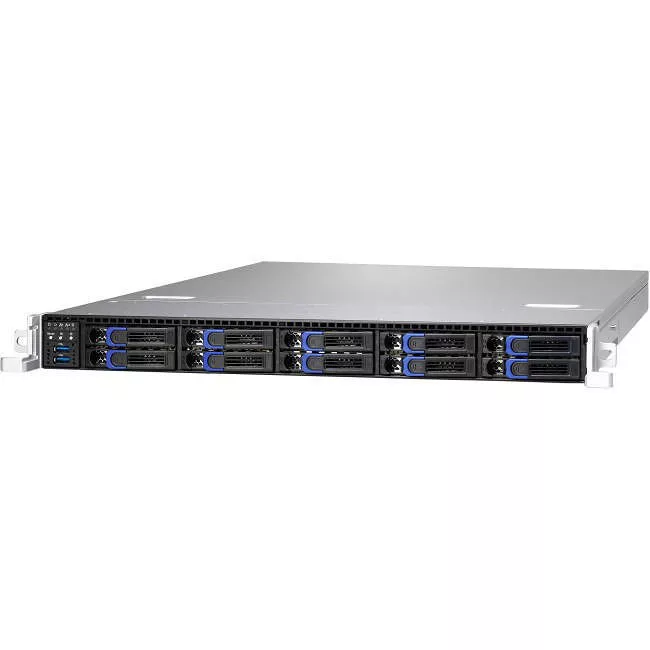

TYAN B5630G62FV10HR Thunder SX GT62FB5630 1U Rackmount Barebone - Intel Chipset - Socket P LGA-3647
Highlights
Specifications
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B5630G62FV10HR
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Thunder SX
Product Model
GT62FB5630
Product Name
Thunder SX GT62FB5630 (B5630G62FV10HR)
Packaged Quantity
1
Product Type
Barebone System
Processor
Number of Processors Supported
1
Processor Socket
Socket P LGA-3647
Processor Supported
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory Supported
1.50 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
12
Controllers
Controller Type
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Graphics Memory Capacity
32 MB
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
10
Total Number of Expansion Slots
1.0
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
5
Number of USB 3.0 Ports
5
Number of SATA Interfaces
10
Operating System
Operating System Supported
Power Description
Input Voltage
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
650 W
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
24.6"
Weight (Approximate)
23.15 lb
Miscellaneous
Package Contents
- Thunder SX GT62FB5630 (B5630G62FV10HR)
- 1 x Quick Installation Guide
- 1 x TYAN Device Driver CD
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
3 Year
