ABOUT
Targeted for use in low-power, small form factor, and ruggedized systems, AMD powerefficient embedded GPUs are an excellent fit for applications including mobile and static-screen digital signage, retail and kiosks, factory human-machine interfaces, thin client computing, and heads-up military and aerospace displays.

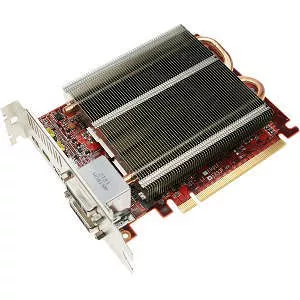

The ER93F Graphic Card provides with two DVI, two Mini DP and one HDMI port, allowing system customers to implement multi-display output without additional video converters or splitters. The ER93F output ports is perfect for developing new system products or upgrading an existing product.
5-Year GPU Chip Supply Cycle
The core AMD Embedded Radeon™ E6760 chip has a product supply cycle of up to 5 years. The stable lifecycle for industrial system and embedded products means that whole systems will not become obsolete prematurely due to a shortage of critical parts. This fits into the demand for long life, durability and stability from industrial and embedded products while also reducing development costs for developers.
The AMD Embedded Radeon™ E6760 GPU delivers exceptional graphics, computing, and multiple displays to the embedded market. Packaged as a multi-chip module (MCM) ball grid array (BGA), the AMD Embedded Radeon™ E6760 Graphic card consists of an advanced 3D graphics and multimedia engine with 1GB of high-speed GDDR5 frame buffer memory.
The advanced 3D graphics engine supports Microsoft® DirectX® 11 and Shader Model 5.0 for superior graphics rendering. AMD's third generation unified video decoder (UVD) supports dual-stream high-definition (HD) decode, along with decode support of H.264 and VC-1, and entropy decode of MPEG-2 HD and MPEG-4 Part 2 (DivX and Xvid) content. The integrated HD audio controller and codec supports linear PCM and 7.1 channels of compressed HD audio with digital rights management (DRM) for HDMI™ and DisplayPort outputs.
With 480 shaders delivering 576 GFLOPs peak single-precision floating-point performance, the AMD Embedded Radeon™ E6760 GPU is ideal for compute intensive general purpose graphics processing (GPGPU) applications. Speed GPGPU software application development with OpenCL™ and the AMD Accelerated Parallel Processing (APP) software development kit (SDK).
Host access to the AMD Embedded Radeon™ E6760 GPU is provided through the 16 lanes PCI Express® 2.1 interface.
The ER93F Graphic Card provides with two DVI, two Mini DP and one HDMI port, allowing system customers to implement multi-display output without additional video converters or splitters. The ER93F output ports is perfect for developing new system products or upgrading an existing product.
5-Year GPU Chip Supply Cycle
The core AMD Embedded Radeon™ E6760 chip has a product supply cycle of up to 5 years. The stable lifecycle for industrial system and embedded products means that whole systems will not become obsolete prematurely due to a shortage of critical parts. This fits into the demand for long life, durability and stability from industrial and embedded products while also reducing development costs for developers.
The AMD Embedded Radeon™ E6760 GPU delivers exceptional graphics, computing, and multiple displays to the embedded market. Packaged as a multi-chip module (MCM) ball grid array (BGA), the AMD Embedded Radeon™ E6760 Graphic card consists of an advanced 3D graphics and multimedia engine with 1GB of high-speed GDDR5 frame buffer memory.
The advanced 3D graphics engine supports Microsoft® DirectX® 11 and Shader Model 5.0 for superior graphics rendering. AMD's third generation unified video decoder (UVD) supports dual-stream high-definition (HD) decode, along with decode support of H.264 and VC-1, and entropy decode of MPEG-2 HD and MPEG-4 Part 2 (DivX and Xvid) content. The integrated HD audio controller and codec supports linear PCM and 7.1 channels of compressed HD audio with digital rights management (DRM) for HDMI™ and DisplayPort outputs.
With 480 shaders delivering 576 GFLOPs peak single-precision floating-point performance, the AMD Embedded Radeon™ E6760 GPU is ideal for compute intensive general purpose graphics processing (GPGPU) applications. Speed GPGPU software application development with OpenCL™ and the AMD Accelerated Parallel Processing (APP) software development kit (SDK).
Host access to the AMD Embedded Radeon™ E6760 GPU is provided through the 16 lanes PCI Express® 2.1 interface.
See More
SPECIFICATIONS
General Information
Manufacturer
TUL Corporation
Manufacturer Part Number
ER93F-PI5PB
Manufacturer Website Address
http://www.powercolor.com
Brand Name
TUL
Product Model
ER93F
Product Name
Radeon E6760 Graphic Card
Product Type
Graphic Card
Technical Information
API Supported
Processor & Chipset
Chipset Manufacturer
AMD
Chipset Line
Radeon
Chipset Model
E6760
GPU Clock
600 MHz
Memory
Standard Memory
1 GB
Memory Technology
GDDR5
Bus Width
128 bit
Interfaces/Ports
HDMI
Yes
Number of HDMI Outputs
1
DVI
Yes
Total Number of DVI Outputs
2
Dual Link DVI Supported
Yes
Number of DVI-I Ports
1
Number of DVI-D Ports
1
Mini DisplayPort
Yes
Number of Mini DisplayPort Outputs
2
Physical Characteristics
Form Factor
Plug-in Card
Cooler Type
Passive Cooler
Height
4.4"
Length
5.7"
Miscellaneous
Platform Supported
PC
See More
