Highlights:
  • Standard Memory: 8 GB
  • HDMI: Yes
  • GPU Clock: 1.20 GHz
  • Cooler Type: Fan Cooler
Contact sales for pricing
For portable medical imaging devices, digital signage installations, and casino and arcade gaming systems, high-performance embedded graphic support a broad range of performance and power requirements that can meet and surpass the needs of most mainstream embedded applications.

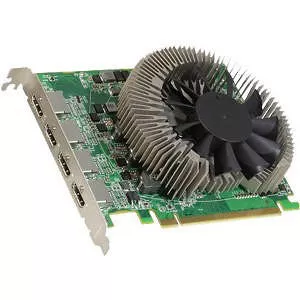

The ER16GF-B Graphic Card provids 4 HDMI outputs, allowing system customers to implement multi-display output without additional video converters or splitters. The ER16GF-B output ports is perfect for developing new system products or upgrading an existing product.

5-Year GPU Chip Supply Cycle
The core AMD Embedded Radeon™ E9260 chip has a product supply cycle of up to 5 years. The stable lifecycle for industrial system and embedded products means that whole systems will not become obsolete prematurely due to a shortage of critical parts. This fits into the demand for long life, durability and stability from industrial and embedded products while also reducing development costs for developers.

The AMD Embedded Radeon™ E9260 GPU delivers exceptional graphics, computing, and multiple displays to the embedded market. The AMD Embedded Radeon™ E9260 Graphic card consists of an advanced 3D graphics and multimedia engine with 8GB of high-speed GDDR5 frame buffer memory.

The Graphics Core Next advanced 3D graphics engine supports Microsoft® DirectX® 12 and Shader Model 5.0 for superior graphics rendering. AMD's sixth generation unified video decoder (UVD) supports dual-stream high-definition (HD) decode, along with decode support of 4K H.265/HEVC and 4K H.264/AVC and VC-1, and entropy decode of MPEG-2 HD and MPEG-4 Part 2 (DivX® and Xvid) content. The integrated HD audio controller and codec supports linear PCM and 7.1 channels of compressed HD audio with digital rights management (DRM) for HDMI™ and DisplayPort outputs.

With 896 shaders delivering 2.2 TFLOPs peak single-precision floating-point performance, the AMD Embedded Radeon™ E9260 GPU is great for compute intensive general purpose graphics processing (GPGPU) applications. Speed GPGPU software application development with OpenCL™ and the AMD Accelerated Parallel Processing (APP) software development kit (SDK).

Host access to the AMD Embedded Radeon™ E9260 GPU is provided through the 8 lanes PCI Express® 3.0 interface.
General Information
Manufacturer
TUL Corporation
Manufacturer Part Number
ER16GF-CP4B
Manufacturer Website Address
http://www.powercolor.com
Brand Name
TUL
Product Model
ER16GF-B
Product Name
Radeon E9260 Graphic Card
Product Type
Graphic Card
Technical Information
API Supported
  • OpenCL 2.0
  • DirectX 12
  • OpenGL 4.5
  • Processor & Chipset
    Chipset Manufacturer
    AMD
    Chipset Line
    Radeon
    Chipset Model
    E9260
    GPU Clock
    1.20 GHz
    Memory
    Standard Memory
    8 GB
    Memory Technology
    GDDR5
    Bus Width
    128 bit
    Interfaces/Ports
    HDMI
    Yes
    Number of HDMI Outputs
    4
    Physical Characteristics
    Form Factor
    Plug-in Card
    Cooler Type
    Fan Cooler
    Height
    4.4"
    Length
    5.7"
    Miscellaneous
    Platform Supported
    PC
