The best choice for mobile platform products in standard MxM 3.0 interface with customized V-BIOS. Supporting 4K high-speed video, 3D visualization, and other compute-intensive graphics applications. Optimized for use in high-end systems spanning casino and arcade gaming, medical imaging, and conventional military and aerospace applications.

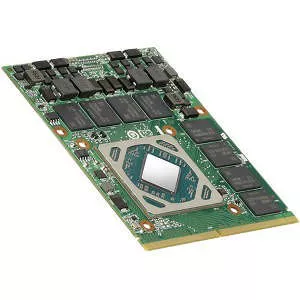

The E16EMF is a high-performance MxM 3.0 Module graphics card that uses the standard MXM type B form-factor. TuL can also customize the V-Bios to the DVI, HDMI and DisplayPort output requirements of each customer's system product to provide mobile devices, panel PCs and server product applications with a flexible and convenient upgrade solution.
3-Year GPU Chip Supply Cycle
The core AMD Embedded Radeon™ E9550 chip has a product supply cycle of up to 3 years. The stable lifecycle for industrial system and embedded products means that whole systems will not become obsolete prematurely due to a shortage of critical parts. This fits into the demand for long life, durability and stability from industrial and embedded products while also reducing development costs for developers.
The AMD Embedded Radeon™ E9550 GPU delivers exceptional graphics, computing, and multiple displays to the embedded market. The AMD Embedded Radeon™ E9550 Graphic card consists of an advanced 3D graphics and multimedia engine with 8GB of high-speed GDDR5 frame buffer memory.
The Graphics Core Next advanced 3D graphics engine supports Microsoft® DirectX® 12 and Shader Model 5.0 for superior graphics rendering. AMD's sixth generation unified video decoder (UVD) supports dual-stream high-definition (HD) decode, along with decode support of 4K H.265/HEVC and 4K H.264/AVC and VC-1, and entropy decode of MPEG-2 HD and MPEG-4 Part 2 (DivX® and Xvid) content. The integrated HD audio controller and codec supports linear PCM and 7.1 channels of compressed HD audio with digital rights management (DRM) for HDMI™ and DisplayPort outputs.
With 2304 shaders delivering 5.7 TFLOPs peak single-precision floating-point performance, the AMD Embedded Radeon™ E9550 GPU is great for compute intensive general purpose graphics processing (GPGPU) applications. Speed GPGPU software application development with OpenCL™ and the AMD Accelerated Parallel Processing (APP) software development kit (SDK).
Host access to the AMD Embedded Radeon™ E9550 GPU is provided through the 16 lanes PCI Express® 3.0 interface.
