TRE-TK-IP101-00
MPN: TK-IP101

TRENDnet TK-IP101 1-Port KVM Switch Over IP, Centralized Management, 1600x1200 Resolution, Ethernet RJ-45, Serial PPP, Windows, KVM Switches, BIOS, GUI,

Highlights
  • Manage multiple servers from your network or remotely from any Internet connection
  • IP-based remote control server management for Windows and Java-based clients
  • An intuitive Web user interface provides control from BIOS level up to OS based applications
  • 2 Year TRENDnet Manufacturer's Warranty

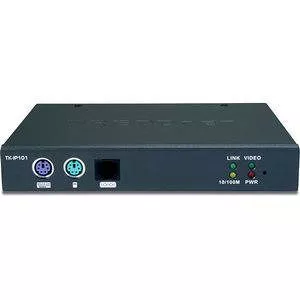

The 1-Port KVM Switch over IP (TK-IP101) provides cost effective remote server management for multiple users, regardless of server status. Eliminate the need to physically be in the server room to troubleshoot, reboot and edit pre-boot functions. Save resources and manage server and PC resources from around corner or around the world. Provides access to both Windows and Java-based clients. With up to 16 active user accounts the TK-IP101 supports 4 concurrent logins. An intuitive Web user interface provides controls from BIOS level functions to Windows based applications. Use the TK-IP101 with the TRENDnet's 8-Outlet Remote Power Controller (TK-RP08) to facilitate remote power cycling and rebooting.
Manage KVM switches and servers remotely over the Internet
Centralize management of multiple servers when connected to a conventional KVM switch
Save time and resources by managing resources remotely
Multiple user access control
Management of remote servers from BIOS level up to GUI level applications
Full 1024-bit PKI authentication and 256-bit SSL encryption
Enjoy crisp 1600x1200 resolution
Intuitive Web user interface permits upgrades and backups
Supports user friendly Telnet sessions and FTP access
Use with TRENDnet's TK-RP08 to control on/off power cycling of multiple devices remotely
Works with LDAP, RADIUS and Active Directory Servers
Ethernet RJ-45 and Serial PPP connections supported
PPP connection over serial RS-232 interface with data rates up to 1 Mbps
Works with Windows and Java-based clients for cross-platform compatibility
Low bandwidth Internet connections supported with JPEG compression
2-year limited warranty
PACKAGE CONTENTS
TK-IP101
Multi-Language Quick Installation Guide
CD-ROM (User's Guide)
1 x PS/2 KVM Cable (1.5 m/5 ft.)
1 x USB Type B Cable (1m/3.3 ft.)
1 x RJ-12 to Female Serial Port Cable (1m/3.3 ft.)
1 x RJ-12 to male Serial Port Cable (1m/3.3 ft.)
1 x RJ-12 to Parallel Port Cable (1m/3.3 ft.)
1 x Power adapter (9 V DC 2 A)
