TRE-TI-EU120-00
MPN: TI-EU120

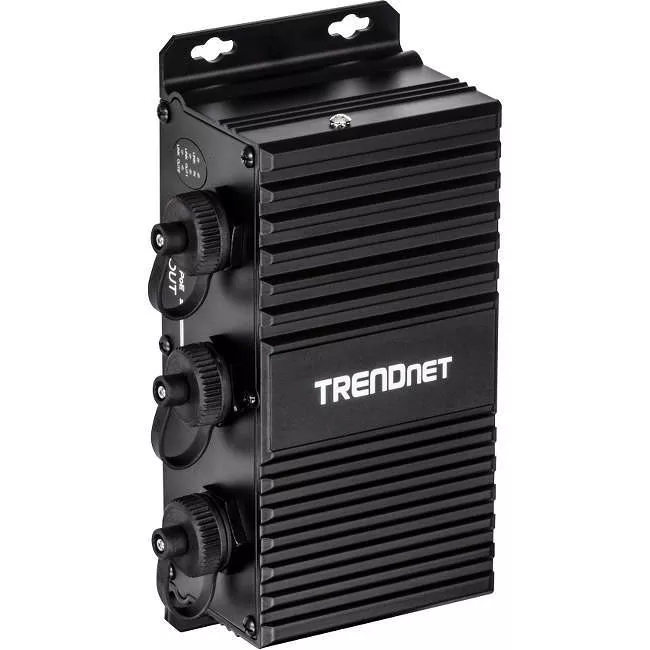

TRENDnet TI-EU120 2-Port Industrial Outdoor Gigabit UPoE Extender, Extends 100m- Total Distance Up to 200m (656'), Supports PoE (15.4W), PoE+(30W), UPoE(60W), IP67 Housing,

Highlights
  • Easy installation
  • Extends 100m for a total distance of up to 200m (656 ft.)
  • Daisy chain up to 4 units for a total PoE network extension of up to 500m (1640 ft.)
  • Use a single UPoE connection to extend PoE for up to two devices
  • Supports PoE (15.4W), PoE+ (30W), UPoE (60W) devices
  • Wide operating temperature range of -40°- 75° C (-40° - 167° F)
  • IP67 outdoor weather rated housing
  • No external power adapter required
  • Built-in True Surge 6kV Protection
  • NDAA / TAA compliant (U.S. and Canada only)


TRENDnet's 2-Port Industrial Outdoor Gigabit UPoE extender, model TI-EU120, takes a single UPoE connection and extends it an additional 100 meters (328 ft.) for up to two PoE+ devices. It auto-detects a PoE (15.4W), PoE+ (30W), or UPoE (60W) signal and extends it for a total distance of up to 200 meters (656 ft.) from the PoE source. Daisy chain up to 4 units for a total PoE network extension of up to 500 meters (1640 ft.). This outdoor UPoE extender features a single UPoE input port and two PoE+ output ports encased in an IP67 weather rated housing. Built-in voltage booster guarantees stable voltage output for your high powered PoE devices.


UPoE Power

Extends a UPoE connection up to 100 meters (328 ft.) to PoE (15.4W), PoE+ (30W), and UPoE (60W) devices

Gigabit Ports

Features one gigabit UPoE input port and two gigabit PoE+ output ports that extends a single UPoE connection an additional 100 meters (328 ft.) to two PoE+ devices.


Outdoor Rated Built for outdoor environments with an IP67 weather rating and an operating temperature range of -40°- 75° C (-40° - 167° F).


PACKAGE CONTENTS

TI-EU120

3 x IP67 weather rated cable glands

Wall mount screws

Quick installation guide
