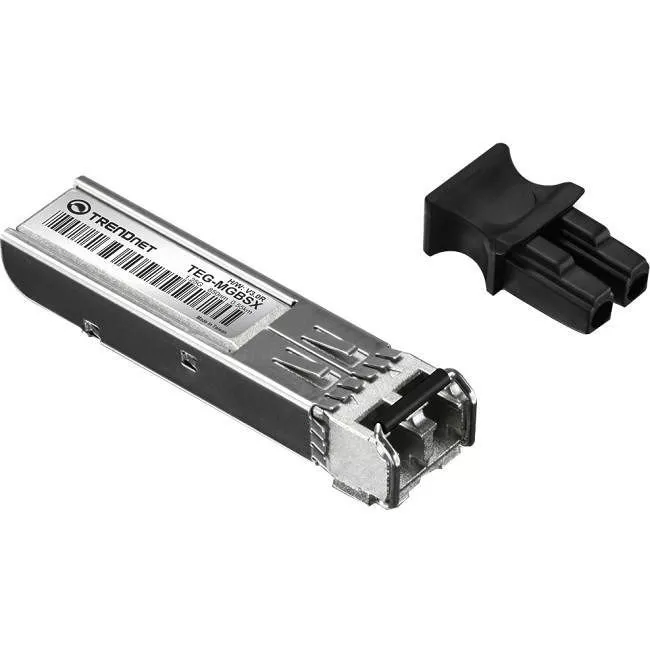

The TEG-MGBSX Mini-GBIC Multi Mode module works with standard Mini-GBIC slots on most switches. This Multi-Mode LC Type module spans distances up to 550m (1,800ft) and includes 1 x 1000Mbps-SX (LC-Type) Mini-GBIC connector
See More
SPECIFICATIONS
General Information
Manufacturer
TRENDnet
Manufacturer Part Number
TEG-MGBSX
Manufacturer Website Address
http://www.trendnet.com
Brand Name
TRENDnet
Product Model
TEG-MGBSX
Product Name
TEG-MGBSX Multi-mode Mini GBIC Module
Product Type
SFP (mini-GBIC)
Technical Information
Application/Usage
Data Networking
Interfaces/Ports
Interfaces/Ports Details
1 x LC Duplex 1000Base-SX
Media & Performance
Media Type Supported
Optical Fiber
Fiber Mode Supported
Multi-mode
Ethernet Technology
Gigabit Ethernet
Network Technology
1000Base-SX
Maximum Distance Supported
1804.46 ft
Maximum Data Transfer Rate
2.13 Gbit/s
Physical Characteristics
Form Factor
Hot-pluggable
Miscellaneous
Additional Information
- Wavelength: 850nm
- Die Cast Metal Housing for low EMI
- Pout (dBm): -9.5 ~ 0.0
- Sensitivity: -18
- Power: 8.5
Application:
- Switch to Switch Interface
- High Speed I/O for File Server
- Channel Extender, Data Storage
Compatibility
- This Module is for industry standard SFP slot
Warranty
Limited Warranty
5 Year
