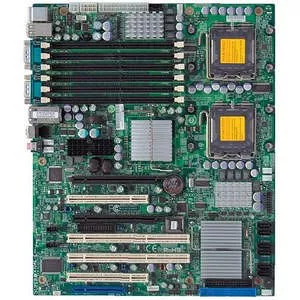

X7DAL-E Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance .
About
X7DAL-E Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance .
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
X7DAL-E-B
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
X7DAL-E
Product Name
X7DAL-E Server Motherboard
Package Type
Bulk
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
5000X
Total Processor Supported
2
Processor Technology
Hyper-Threading Technology
Processor Socket
Socket J LGA-771
Processor Supported
Xeon
Front Side Bus
Memory
Number of Memory Slots
6
Maximum Memory Supported
24 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Audio
Audio Channels
5.1
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
6
Number of PCI Slots
2
Number of PCI-X Slots
2
Total Number of PCI Express Slots
2
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 2.0 Ports
4
Serial Port
Yes
Audio Line In
Yes
Audio Line Out
Yes
Microphone Port
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
1
Number of SATA Interfaces
6
Total Number of Onboard USB Ports
1
Onboard LEDs Header
Yes
Physical Characteristics
Width
12"
Depth
10"
Miscellaneous
Additional Information
- ROHS Compliant
Chipsets:
- Intel 5000X (GreenCreek)
- MCH
- ESB2
Hardware Monitoring:
- Onboard voltage monitors for CPU cores, +1.8V, +3.3V, +5V, +12V,12V, +3.3V standby, +5V standby and VBAT)
- Fan status monitor with firmware control
- CPU/chassis temperature monitors
- Low noise fan speed control
- Platform Environment Control Interface (PECI) ready
- CPU fan auto-off in sleep mode
- Pulse Width Modulation (PWM) fan control
- I2C temperature sensing logic
- Thermal Monitor 2 (TM2) support
- CPU slow-down on temperature overheat
- CPU thermal trip support for processor protection
- Power-up mode control for recovery from AC power loss
- Chassis intrusion detection
- System resource alert via Supero Doctor III
- CPU Core 4-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
- Status monitor for speed control
- Status monitor for on/off control
- Low noise fan speed control
- Thermal Control for 6x Fan Connectors
- I2C temperature sensing logic
- Thermal Monitor 2 (TM2) support
- Suspend-state Indicator LED +5V Standby Alert LED
- Chassis intrusion detection
- Chassis intrusion header
- SDDC Support
ACPI Features:
- Slow blinking LED for suspend state indicator
- Main switch override mechanism
- ACPI Power Management (S1, S3, S4, S5)
- Power-on mode for power recovery
Support CD Contents:
- BIOS fl ash upgrade utility
- Device drivers
BIOS Features:
- 8 Mb Phoenix Flash ROM
- DMI 2.3, PCI 2.2, ACPI 1.0, Plug and Play (PnP), USB Keyboard support, Hardware BIOS Virus Protection and SMBIOS 2.3
Software:
- Super Doctor III
- Watch Dog
- NMI
