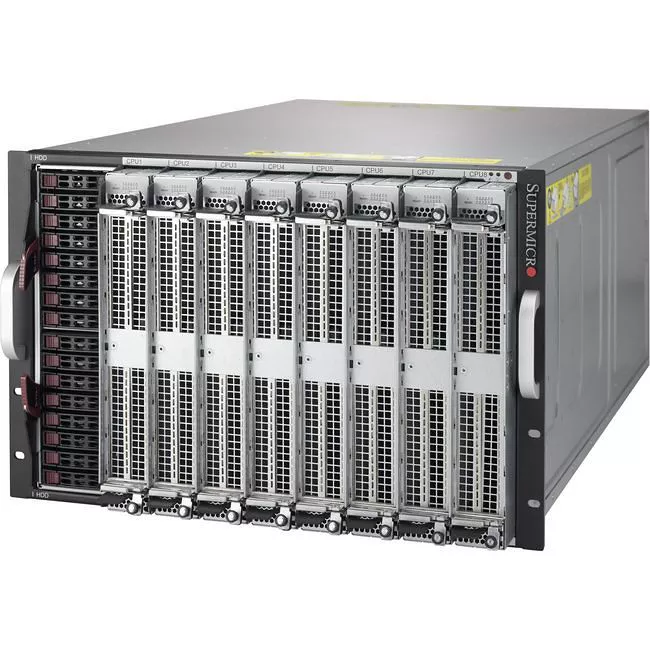

Supermicro SuperMinute: X11 8-Way Server
Supermicro's flagship Scale-Up server, SYS-7089P-TR4T is the most powerful, highest performing, highest memory footprint server designed for the latest generation of Intel® Xeon® Scalable processors.
About
Supermicro SuperMinute: X11 8-Way Server
Supermicro's flagship Scale-Up server, SYS-7089P-TR4T is the most powerful, highest performing, highest memory footprint server designed for the latest generation of Intel® Xeon® Scalable processors.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-7089P-TR4T
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
7089P-TR4T
Product Name
SuperServer 7089P-TR4T (Black)
Product Type
Barebone System
Processor
Number of Nodes
8
Number of Processors Supported
8
Processor Socket
Socket P LGA-3647
Processor Supported
Chipset
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory Supported
24 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2933/PC4-23466
Number of Total Memory Slots
96
Intel Optane Memory Ready
Yes
Controllers
Controller Type
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
10 Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports
2
Number of SATA Interfaces
12
Power Description
Input Voltage
Number of Power Supplies Installed
5
Maximum Power Supply Wattage
1600 W
Physical Characteristics
Product Color
Black
Form Factor
Rack-mountable
Rack Height
7U
Height
12.2"
Width
17.6"
Depth
28.9"
Weight (Approximate)
180 lb
Miscellaneous
Package Contents
- SuperServer 7089P-TR4T (Black)
- 1 x CSE-718SAC-R4800 7U Chassis
- 8 x Super X11OPi-CPU Motherboard
- 1 x [NR]AOC-MTG-I4TM-P
- 1 x Storage add-on module for X11OPI series MB
- 1 x KVM board for X11OPI Eight Way system
- 1 x PCH and BMC Add on Module for X11OPi series 7u 8-way system,
- 1 x 16-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD
- 1 x Midplane for X11 8-way 7U server 7089P, support hot plug PCIE
- 1 x USB/KVM/SUVI,36 PIN TO 9 PIN/15 PIN/2 USB CH,11.5CM,30/28AWG
- 1 x HDD power extension for X8OBN, special 8 pin to 4 HDD. 45cm. 18AWG
- 2 x MINI SAS HD-MINI SAS,6G,INT,50CM,SB,30AWG
- 8 x RSC-BLG-E16R
- 8 x 1U LHS Riser Card with one PCI-E 3.0 x16 slot for the X11OPI
- 5 x PCIE riser card for X11OPI series 7U 8 way system,RoHS
- 8 x 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
- 5 x AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH
- 8 x 92x92x76 mm, 10.5K-10.8K RPM, Counter-rotating Exhaust Fan for SC718 X10 8-way Server
Environmentally Friendly
Yes
Warranty
Limited Warranty
3 Year
