Highlights:
- GPU Supported: 4
- Processor Socket: Socket LGA 2011-v3
- Maximum Memory: 1 TB
- Memory Standard: DDR4-2133/PC4-17000
Supermicro offers a complete line of SuperWorkstation Solutions from entry level to ultimate high-end systems. All systems are built with Supermicro quality and include high-efficiency power supplies, optimized cooling subsystems, advanced motherboard designs and rich multimedia features. SuperWorkstations are ideal for Content Generation, Gaming, Entertainment, Scientific Research and General-Purpose Computing.
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-7048GR-TR
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperWorkstation
Product Model
7048GR-TR
Product Name

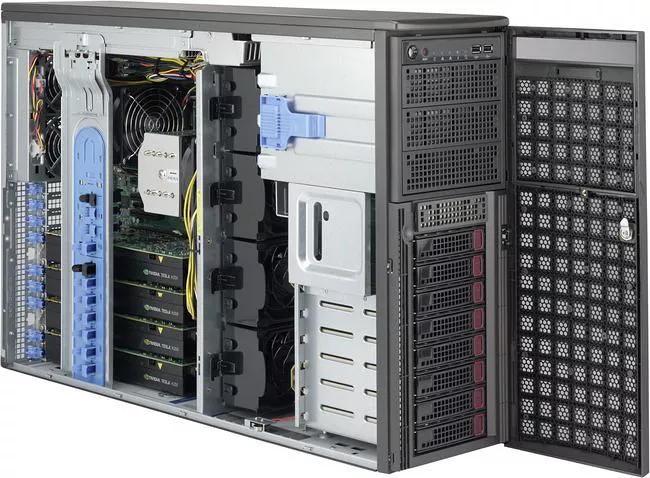

SuperServer 7048GR-TR (Black)
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
2
Processor Socket
Socket LGA 2011-v3
Processor Supported
Xeon
QuickPath Interconnect Supported
Yes
QuickPath Interconnect
9.60 GT/s
64-bit Processing
Yes
Chipset Manufacturer
Intel
Chipset Model
C612 Express
Memory
Maximum Memory
1 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2133/PC4-17000
Number of Total Memory Slots
16
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
RAID Levels
0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
12
Number of External 5.25" Bays
3
Number of 3.5" Bays
9
Number of Total Expansion Slots
7
Number of PCI Express x8 Slots
3
Number of PCI Express x16 Slots
4
Interfaces/Ports
Total Number of USB Ports
9
Number of USB 2.0 Ports
4
Number of USB 3.0 Ports
5
Network (RJ-45)
Yes
Audio Line In
Yes
Audio Line Out
Yes
VGA
Yes
Number of SATA Interfaces
10
Power Description
Input Voltage
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
2000 W
Physical Characteristics
Color
Black
Form Factor
Tower
Rack Height
4U
Height
18.2"
Width
7"
Depth
26.5"
Miscellaneous
Package Contents
- SuperServer 7048GR-TR (Black)
- 1 x Super X10DRG-Q Motherboard
- 1 x 4U Chassis
- 1 x 4U, SAS Backplane,x8 3.5
- 8 x 55cm 30AWG SATA S-S cable
- 2 x 8 pin to 8 pin round SGPIO cable, 40cm, 28AWG, pinout 1-1,RoHS/REACH
- 2 x 4U Active CPU Heat Sink for X9, X10 Workstations
- 2 x 2000W redundant platinum power supply
Certifications & Standards
- ACPI 1.0
- ACPI 2.0
Environmentally Friendly
Yes
Environmental Certification
RoHS
