MPN: SYS-7046GT-TRF-TC4

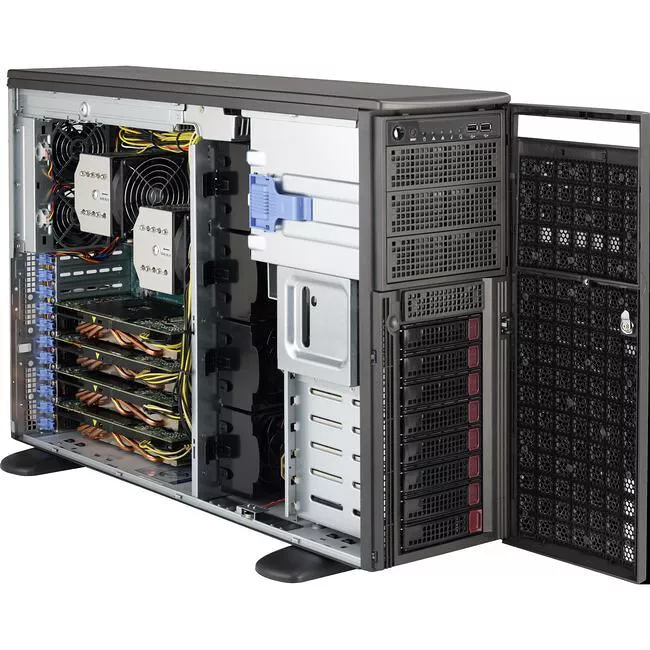

Supermicro SYS-7046GT-TRF-TC4 4U RM Barebone Tower - Intel 5520 Chipset - LGA-1366 - 2x CPU
Highlights
About
Specifications
Designed for optimal performance, the dual-processor SuperServer 7046GT-TRF-TC4 Barebone System supports the QPI format quad-core/dual-core Xeon processors in a high-density 4U form-factor. This 7046 SuperServer is ideal for network infrastructure, front-end enterprise and minimal-downtime cluster server systems.
About
Designed for optimal performance, the dual-processor SuperServer 7046GT-TRF-TC4 Barebone System supports the QPI format quad-core/dual-core Xeon processors in a high-density 4U form-factor. This 7046 SuperServer is ideal for network infrastructure, front-end enterprise and minimal-downtime cluster server systems.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-7046GT-TRF-TC4
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
7046GT-TRF-TC4
Product Name
SuperServer 7046GT-TRF-TC4 Barebone System
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket B LGA-1366
Processor Supported
Xeon
Chipset
Chipset Manufacturer
Intel
Chipset Model
5520
Memory
Maximum Memory Supported
96 GB
Memory Technology
DDR3 SDRAM
Memory Standard
DDR3-1333/PC3-10600
Number of Total Memory Slots
12
Controllers
Controller Type
Serial ATA/300
RAID Supported
Yes
RAID Levels
0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
NVIDIA
Graphics Controller Model
Tesla C1060
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
12
Number of External 5.25" Bays
3
Number of 3.5" Bays
9
Number of Total Expansion Slots
9
Number of PCI Slots
2
Number of PCI Express x8 Slots
1
Number of PCI Express x16 Slots
6
Interfaces/Ports
Total Number of USB Ports
6
Number of USB 2.0 Ports
6
Network (RJ-45)
Yes
VGA
Yes
Power Description
Input Voltage
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
2800 W
Physical Characteristics
Product Color
Black
Form Factor
Tower
Rack Height
4U
Height
7"
Width
17.8"
Depth
29.4"
Weight (Approximate)
72 lb
Miscellaneous
Package Contents
- SuperServer 7046GT-TRF-TC4 Barebone System
- 1 x Super X8DTG-QF Motherboard
- 1 x 4U Chassis
- 4 x NVIDIA C1060 TESLA GPU/ACTIVE HEATSINK
- 1 x BPN-SAS-747TQ Backplane
- 6 x 35CM, SATA CABLE, PB FREE
- 2 x 8pin to 8pin ribbon cable with tube for SGPIO, 40cm, PBF
- 1 x CD For X8 series
- 2 x 4U+ ACTIVE CPU HS FOR SC733 AND SC735
- 1 x POWER DISTRIBUTOR FOR SC747 W/ GRAPHIC OUTPUT FEATURE
- 2 x 1400W 1U GOLD LEVEL PWS W/ PM BUS & WX3""
- 1 x ROUND 16 TO 16 PIN RIBBON FP CABLE 30""
- 4 x 4 TO 4 PIN MIDDLE FAN POWER EXTENSION, 200MM (PWM)
- 2 x 4 to 4 pin rear fan pwr ext w/ square header, 30cm (PWM)
- 2 x 80x38 4 pin PWM fan assembly for SC743, 745
- 4 x 92x38mm 4-PIN PWM FAN W/ HUS for SC747
- 1 x Front Bezel Filter
- 8 x Hot-swappable Hard Drive Tray
- 1 x I/O Shield
Additional Information
QuickPath Technology:
- QuickPath Interconnect supports up to 6.4 GT/s
GPU Detail:
- 4 x Nvidia Tesla C1060 GPU Cards
Expansion Slot Detail:
- PCI Express x8 slot has the bus speed of PCI Express x4
- 2 x PCI Express x16 slots have the bus speed of PCI Express x4
Environmentally Friendly
Yes
Environmental Certification
Warranty
Limited Warranty
3 Year
