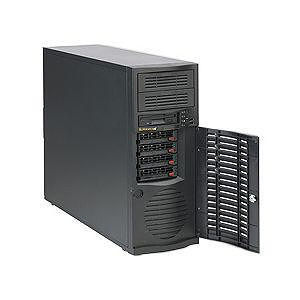

Designed for optimal performance, the dual-processor SuperWorkstation 7036A-T Barebone System supports the QPI format quad-core/dual-core Xeon processors in a high-density Mid-Tower form-factor. This 7036 SuperWorkstation is ideal for graphics-intensive applications, extreme gaming, or video rendering.
About
Designed for optimal performance, the dual-processor SuperWorkstation 7036A-T Barebone System supports the QPI format quad-core/dual-core Xeon processors in a high-density Mid-Tower form-factor. This 7036 SuperWorkstation is ideal for graphics-intensive applications, extreme gaming, or video rendering.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-7036A-T
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperWorkstation
Product Model
7036A-T
Product Name
SuperWorkstation 7036A-T Barebone System
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket B LGA-1366
Processor Supported
Xeon
Chipset
Chipset Manufacturer
Intel
Chipset Model
5500
Memory
Maximum Memory Supported
24 GB
Memory Technology
DDR3 SDRAM
Memory Standard
DDR3-1333/PC3-10600
Number of Total Memory Slots
6
Controllers
Controller Type
Serial ATA/300
RAID Supported
Yes
RAID Levels
0, 1, 5, 10
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
7
Number of External 5.25" Bays
2
Number of 3.5" Bays
5
Number of Total Expansion Slots
5
Number of PCI Slots
2
Number of PCI Express x4 Slots
1
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Network (RJ-45)
Yes
Audio Line Out
Yes
Power Description
Input Voltage
Number of Power Supplies Installed
1
Maximum Power Supply Wattage
665 W
Physical Characteristics
Product Color
Black
Form Factor
Mid-tower
Height
16.8"
Width
7"
Depth
20.9"
Weight (Approximate)
39 lb
Miscellaneous
Package Contents
- SuperWorkstation 7036A-T Barebone System
- 1 x Super X8DAL-i Motherboard
- 1 x Mid-Tower SC733 Chassis
- 1 x CSE-SAS-733TQ-O-P Backplane
- 1 x 8pin to 8pin ribbon cable with tube for SGPIO, 40cm, PBF
- 4 x SATA CABLE 48CM FLAT STRAIGHT-STRAIGHT PBF
- 1 x CD For X8 series
- 2 x 4U+ ACTIVE CPU HS FOR SC733 AND SC735
- 1 x 665W PS2 POWER SUPPLY W/ 8CM FAN
- 1 x Front ctrl cable 16 PIN TO 16 PIN, LF, Flat (L=54cm)
- 1 x Front ctrl cable 16 PIN SPLIT CONVERTOR 6""
- 1 x 92X25MM 4-PIN PWM FAN W/ HUS FOR SC733
- 1 x 120X38MM 4-PIN PWM FAN W/HUS FOR SC733
- 4 x Hot-swap Drive Tray for SC733
Additional Information
QuickPath Technology:
- QuickPath Interconnect supports up to 6.4 GT/s
Expansion Slot Detail:
- 1 x PCI Express x16 slot has the bus speed of PCI Express x4
Environmentally Friendly
Yes
Environmental Certification
80 Plus Bronze
Warranty
Limited Warranty
3 Year
