MPN: SYS-7034L-IB

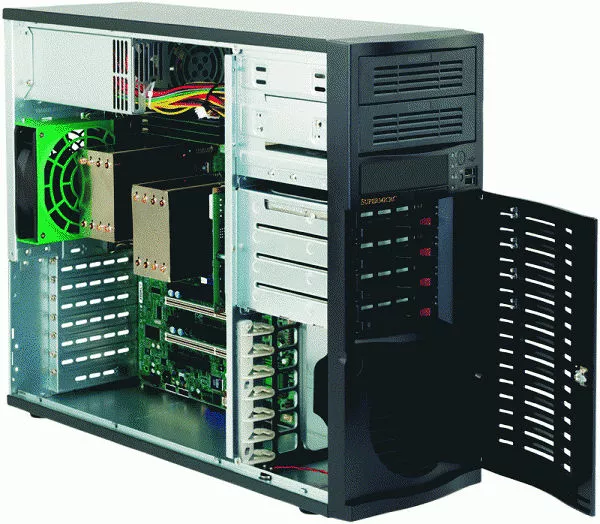

Supermicro SYS-7034L-IB Mid Tower Barebone - E7520 Chipset - x2 Xeon Processor LV Support
Highlights
About
Specifications
SuperServer 7034L-iB Barebone System of choice for supercomputer clusters and enterprise databases as well as business-critical, front-end server applications.
About
SuperServer 7034L-iB Barebone System of choice for supercomputer clusters and enterprise databases as well as business-critical, front-end server applications.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-7034L-IB
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
7034L-iB
Product Name
SuperServer 7034L-iB Barebone System
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket PGA-479
Processor Supported
Xeon
Front Side Bus
667 MHz
Chipset
Chipset Manufacturer
Intel
Chipset Model
E7520
Memory
Maximum Memory Supported
16 GB
Memory Technology
DDR2 SDRAM
Memory Standard
DDR2-400/PC2-3200
Number of Total Memory Slots
8
Controllers
Controller Type
RAID Supported
Yes
RAID Levels
0, 1
Display & Graphics
Graphics Controller Manufacturer
ATI
Graphics Controller Model
RAGE XL
Graphics Memory Capacity
8 MB
Graphics Controller Interface
PCI
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
3
Number of External 5.25" Bays
2
Number of 3.5" Bays
1
Number of Total Expansion Slots
4
Number of PCI Slots
1
Number of PCI-X Slots
2
Number of PCI Express x8 Slots
1
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Network (RJ-45)
Yes
VGA
Yes
Power Description
Input Voltage
Number of Power Supplies Installed
1
Maximum Power Supply Wattage
450 W
Physical Characteristics
Product Color
Black
Form Factor
Mid-tower
Height
7"
Width
16.8"
Depth
20.9"
Weight (Approximate)
39.02 lb
Miscellaneous
Package Contents
- SuperServer 7034L-iB Barebone System
- 1 x Super X6DLP-EG2 Motherboard
- 1 x Mid-Tower SC733i-450 Chassis
- 2 x 2 Ft., Serial ATA, Pb-Free Cable
- 1 x Front Panel Ribbon Cable (16-pin to 16-pin)
- 1 x Floppy Cable
- 1 x IDE CD-ROM Cable
- 1 x Y Split SATA Power Adapter 6 Cable
- 1 x 120mm 4000RPM Rear Exhaust Fan
- 1 x 90mm 3500RPM Thermal Fan
- 3 x 3-Wire Active Heat Sink For Sossaman CPU
- 1 x 3.5" 1.44MB Floppy Drive
- 1 x SP450-RP 450W Power Supply
- 1 x I/O Shield
Additional Information
- 1x IDE Drive Carrier (capacity for up to 4 Hard Disk Drives)
BIOS Features:
- 8Mb Flash EEPROM with AMI BIOS
- SST
- Plug and Play (PnP)
- SMBIOS 2.3
- APM 1.2
- DMI 2.3
- PCI 2.2
- ACPI 1.0
- BIOS Rescue hot keys
- USB Keyboard support
- Hardware BIOS Virus protection
Warranty
Limited Warranty
3 Year
