MPN: SYS-6026T-TF

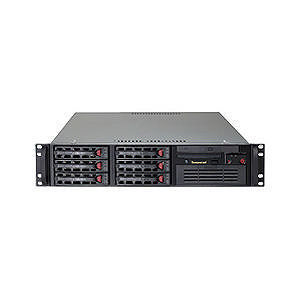

Supermicro SYS-6026T-TF 2U Rack Barebone - Intel 5520 Chipset - 2X Socket B LGA-1366
Highlights
About
Specifications
Designed for optimal performance, the dual-processor SuperServer 6026T-TF Barebone System supports the QPI format quad-core/dual-core Xeon processors in a high-density 2U form-factor. This 6026 SuperServer is ideal for network infrastructure, front-end enterprise and minimal-downtime cluster server systems.
About
Designed for optimal performance, the dual-processor SuperServer 6026T-TF Barebone System supports the QPI format quad-core/dual-core Xeon processors in a high-density 2U form-factor. This 6026 SuperServer is ideal for network infrastructure, front-end enterprise and minimal-downtime cluster server systems.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-6026T-TF
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
6026T-TF
Product Name
SuperServer 6026T-TF Barebone System
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket B LGA-1366
Processor Supported
Xeon
Chipset
Chipset Manufacturer
Intel
Chipset Model
5520
Memory
Maximum Memory Supported
192 GB
Memory Technology
DDR3 SDRAM
Memory Standard
DDR3-1066/PC3-8500
Number of Total Memory Slots
12
Controllers
Controller Type
Serial ATA/300
RAID Supported
Yes
RAID Levels
0, 1, 1+0, 5
Display & Graphics
Graphics Controller Manufacturer
Matrox
Graphics Controller Model
G200eW
Graphics Memory Capacity
8 MB
Graphics Memory Technology
DDR2 SDRAM
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
7
Number of External 5.25" Bays
1
Number of 3.5" Bays
6
Number of Total Expansion Slots
5
Number of PCI Express x4 Slots
1
Number of PCI Express x8 Slots
2
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 2.0 Ports
4
Network (RJ-45)
Yes
VGA
Yes
Power Description
Input Voltage
Number of Power Supplies Installed
1
Maximum Power Supply Wattage
650 W
Physical Characteristics
Product Color
Black
Form Factor
Rack-mountable
Rack Height
2U
Height
3.5"
Width
16.8"
Depth
25.6"
Miscellaneous
Package Contents
- SuperServer 6026T-TF Barebone System
- 1 x Super X8DTE-F Motherboard
- 1 x 2U Black Chassis
- 1 x 823 SAS TQ BACKPLANE W/AMI 9072
- 3 x 35CM, SATA CABLE, PB FREE
- 2 x 8pin to 8pin ribbon cable with tube for SGPIO, 40cm, PBF
- 3 x SATA CABLE 48CM FLAT S-S PBF
- 1 x CD For X8 series
- 2 x 2U+ PASSIVE CPU HS FOR INTEL LGA1366 X8 MB
- 1 x 2U 650W REDUNDANT FAN POWER SUPPLY
- 1 x Front ctrl cable 16 PIN TO 16 PIN, LF, Flat (L=54cm)
- 1 x US power cord 16AWG 6ft, PBF (default for high watt)
- 4 x 80X38MM 4-PIN PWM FAN W/ HUS FOR SC825
- 1 x 2U Chassis Rails. Outer slides extendable length: 28.25" to 33"
- 6 x 3.5" Hard Drive Trays
Additional Information
QuickPath Technology:
- QuickPath Interconnect supports up to 6.4 GT/s
Expansion Slot Detail:
- PCI Express x16 slots have the bus speed of PCI Express x8
Environmentally Friendly
Yes
Environmental Certification
Warranty
Limited Warranty
3 Year
