MPN: SYS-6016T-MT

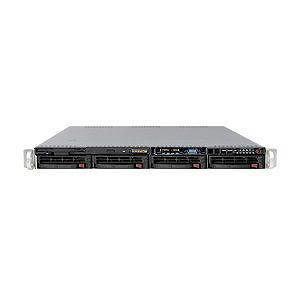

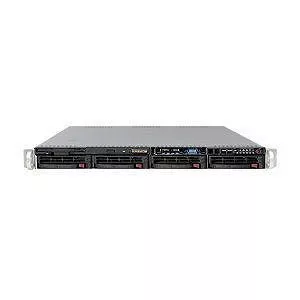

Supermicro SYS-6016T-MT 1U Rackmount Barebone System - Intel 5500 Chipset - 2X Socket LGA 1366
Highlights
About
Specifications
Designed for optimal performance, the dual-processor SuperServer 6016T-MT Barebone System support the QPI format quad-core/dual-core Xeon processors in a high-density 2U form-factor. This SuperServer is ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.
About
Designed for optimal performance, the dual-processor SuperServer 6016T-MT Barebone System support the QPI format quad-core/dual-core Xeon processors in a high-density 2U form-factor. This SuperServer is ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-6016T-MT
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
6016T-MT
Product Name
SuperServer 6016T-MT Barebone System
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket B LGA-1366
Processor Supported
Xeon
Chipset
Chipset Manufacturer
Intel
Chipset Model
5500
Memory
Maximum Memory Supported
24 GB
Memory Technology
DDR3 SDRAM
Memory Standard
DDR3-1333/PC3-10600
Number of Total Memory Slots
6
Storage
Optical Drive Type
DVD-Reader
Optical Media Supported
DVD-ROM
Controllers
Controller Type
Serial ATA/300
RAID Supported
Yes
RAID Levels
0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
Matrox
Graphics Controller Model
G200eW
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
4
Number of 3.5" Bays
4
Number of Total Expansion Slots
1
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Network (RJ-45)
Yes
VGA
Yes
Power Description
Input Voltage
Number of Power Supplies Installed
1
Maximum Power Supply Wattage
520 W
Physical Characteristics
Product Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
19.8"
Weight (Approximate)
31 lb
Miscellaneous
Package Contents
- SuperServer 6016T-MT Barebone System
- 1 x Super X8DTL-i Motherboard
- 1 x 1U Black Chassis
- 1 x 1U Air Shroud
- 1 x BPN-SAS-815TQ-O-P Backplane
- 1 x 61cm, SATA S-S, PBF
- 1 x 8pin to 8pin ribbon cable with tube for SGPIO, 40cm, PBF
- 1 x SATA CABLE SET OF 4: 23, 33, 44, 55CM, RIGHT ANGLE, PBF
- 1 x Black slim IDE DVD (8x DVD, 24x CDR), TEAC
- 1 x CD For X8 series
- 1 x RISER CARD 1U PCI-E 16X TO 16X
- 2 x 1U PASSIVE CPU HS FOR INTEL LGA1366 (HTP)
- 1 x 520W,1U w/ harness power supply, 24 pin; server exemption
- 1 x Front ctrl cable 16 PIN TO 16 PIN, LF
- 1 x ROUND FLOPPY CABLE 60CM FOR 5013S, LF
- 4 x 40X28MM 4-PIN PWM FAN FOR SC813
- 1 x THIRD GENERATION GUIDE RAIL ASSY. Outer slides extendable length: 26" to 33.5"
- 4 x Hot-swappable Hard Drive Tray
Additional Information
QuickPath Technology:
- QuickPath Interconnect supports up to 6.4 GT/s
Expansion Slot Detail:
- PCI Express x16 slot has the bus speed of PCI Express x8
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
3 Year
