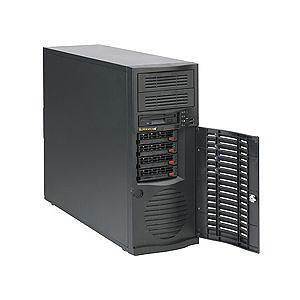

SuperWorkstation 5036T-TB Barebone System supports the new Intel Core i7 processor family. This system features dual x16 PCI-E 2.0, 1 PCI-E x4, 2x PCI-X 133MHz, 1x PCI slots and DDR3 1333MHz memory support for high-performance digital content creation and editing.
About
SuperWorkstation 5036T-TB Barebone System supports the new Intel Core i7 processor family. This system features dual x16 PCI-E 2.0, 1 PCI-E x4, 2x PCI-X 133MHz, 1x PCI slots and DDR3 1333MHz memory support for high-performance digital content creation and editing.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-5036T-TB
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperWorkstation
Product Model
5036T-TB
Product Name
SuperWorkstation 5036T-TB Barebone System
Product Type
Barebone System
Processor
Processor Socket
Socket B LGA-1366
Processor Supported
Chipset
Chipset Manufacturer
Intel
Chipset Model
X58 Express
Memory
Maximum Memory Supported
24 GB
Memory Technology
DDR3 SDRAM
Memory Standard
DDR3-1333/PC3-10600
Number of Total Memory Slots
6
Controllers
Controller Type
Serial ATA/300
RAID Supported
Yes
RAID Levels
0, 1, 5, 10
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
7
Number of External 5.25" Bays
2
Number of 3.5" Bays
5
Number of Total Expansion Slots
6
Number of PCI Slots
1
Number of PCI-X Slots
2
Number of PCI Express x8 Slots
1
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
8
Number of USB 2.0 Ports
8
Network (RJ-45)
Yes
Audio Line Out
Yes
Power Description
Input Voltage
Number of Power Supplies Installed
1
Maximum Power Supply Wattage
465 W
Physical Characteristics
Product Color
Black
Form Factor
Mid-tower
Height
16.8"
Width
7"
Depth
20.9"
Weight (Approximate)
39 lb
Miscellaneous
Package Contents
- SuperWorkstation 5036T-TB Barebone System
- 1 x Super X8SAX Motherboard
- 1 x Mid-Tower SC733T-465 Chassis
- 1 x 4 x 3.5" SAS / SATA Backplane with SES-II
- 1 x 16-pin to 16-pin Front Cable
- 1 x 35cm SATA Cable
- 1 x 6" 16-pin Front Control Split Convertor
- 1 x 8-pin to 8-pin Ribbon Cable for SGPIO
- 1 x Internal to External 1394 Connector
- 4 x Hot-swap Drive Tray for SC733
- 1 x 465W Low Noise Power Supply
- 1 x I/O Shield
- 1 x 12 cm Slim Low Noise Fan
- 1 x Heatsink / Retention
Additional Information
Expansion Slot Detail:
- PCI Express x8 slot has the bus speed of PCI Express x4
Environmentally Friendly
Yes
Environmental Certification
80 Plus
Warranty
Limited Warranty
3 Year
