ABOUT
Built to deliver long lifespan performance for the latest in embedded, industrial, and security applications, Supermicro uni-processor 1U rack servers and the newest Intel Xeon E3-1200 v5 family processors enable the best performance and efficiency available, with the highest levels of quality and reliability.
See More
SPECIFICATIONS
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-5019S-MT
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
5019S-MT
Product Name

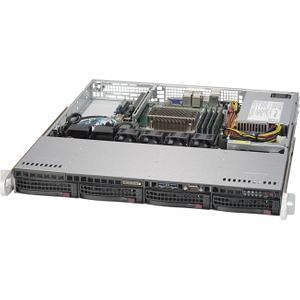

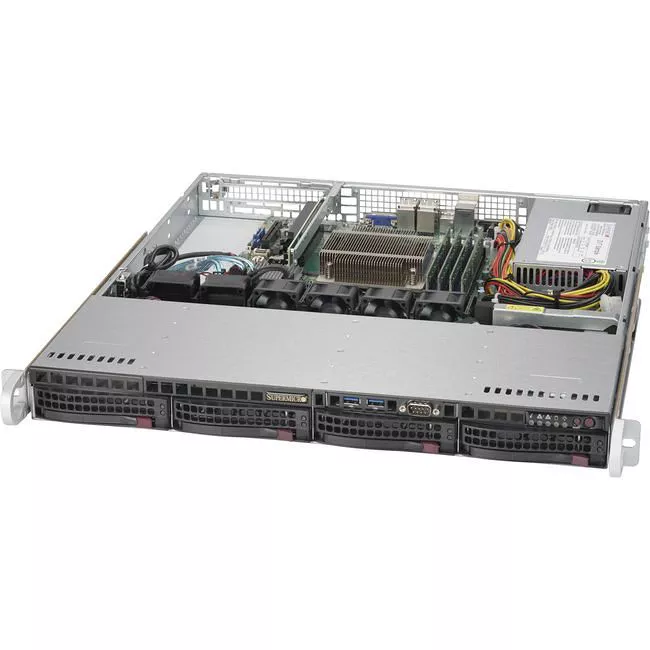

SuperServer 5019S-MT (Black)
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
1
Processor Socket
Socket H4 LGA-1151
Processor Supported
64-bit Processing
Yes
Chipset Manufacturer
Intel
Chipset Model
C236
Memory
Maximum Memory
64 GB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2133/PC4-17000
Number of Total Memory Slots
4
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Network & Communication
Ethernet Technology
10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
4
Number of 3.5" Bays
4
Number of Total Expansion Slots
1
Number of PCI Express x8 Slots
1
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 3.0 Ports
2
Number of SATA Interfaces
4
Power Description
Input Voltage
Number of Power Supplies Installed
1
Maximum Power Supply Wattage
350 W
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
19.8"
Weight (Approximate)
17.64 lb
Miscellaneous
Package Contents
- SuperServer 5019S-MT (Black)
- 1 x Super X11SSH-TF Motherboard
- 1 x 1U Chassis
- 1 x SC811/SC512L/SC512F/SC813M/SC113M/SC513L-410B/SC513L-420B/SC513F, UP X9SRE/I, X9 Mylar Air Shroud, 12"x9.6" MB
- 1 x 1U 4-Port 12Gbps Backplane Support 4x3.5"" SAS/SAS HDD/SSD
- 1 x SET OF 4 SATA 56/45.5/35/23CM ROUND S-RA. 26AWG
- 1 x 8 pin to 8 pin round SGPIO cable, 40cm, 28AWG, pinout 1-1,RoHS/REACH
- 1 x Black 2x USB3.0/COM port tray in slim FDD bay
- 1 x 5019S-MT,QRG,HF,RoHS/REACH
- 1 x RSC-RR1U-E8 (Rev 4.00)
- 1 x 1U PASSIVE CPU HS FOR INTEL LGA1156
- 1 x 1U Single AC-DC 350W Platinum Level, multiple output power supply (180mm)
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
3 Year
See More
