SMC-SYS-5019P-MT-00
MPN: SYS-5019P-MT

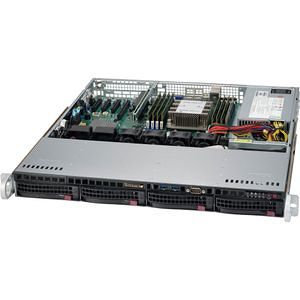

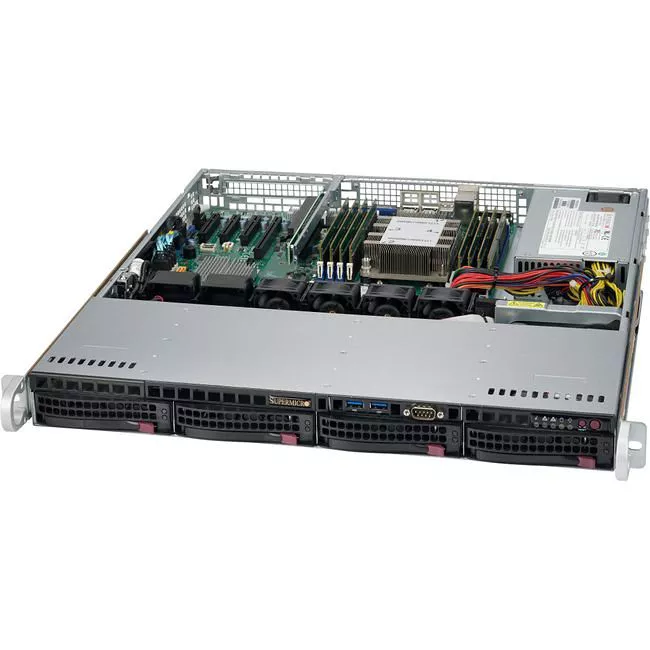

Supermicro SYS-5019P-MT 1U Rackmount Barebone - Intel C622 Chipset - Socket P LGA 3647


Highlights

Specifications

  • Mfr Part Number: SYS-5019P-MT
  • Motherboard: Super X11SPi-TF
  • Processor: Single Socket PÂ LGA 3647
    • Support Intel Xeon Scalable Processors
    • Support CPU TDP 70-205W
    • Up to 28 Cores with Intel HT Technology
  • Chipset: Intel C622
  • Memory: 8x DDR4-2666/ 2400/ 2133 MHz DIMM Slots, Supports up to 1TB ECC/3DS Load Reduced Memory or up to 256GBÂ ECC/REG Memory
  • Slots: 1x PCI-E 3.0 x16 slot
  • SATA: 4x SATA3 Ports, supports RAID 0, 1, 5, 10
  • Video: Aspeed AST2500 BMC Graphic
  • LAN: Dual 10GBase-T LAN with Intel X772 + X557
  • Drive Bays:Â 4x Hot-swap 3.5" SATA3 Drive Bays
  • Ports:Â 4x USB 3.0 Ports (2 front, 2 rear), 2x USB 2.0 ports (rear), 1x VGA Port, 2x Serial Ports (1 rear, 1 header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
  • Form Factor: 1U Rackmount
  • Power Supply:Â 350WÂ 80 PLUS Platinum Certified AC Power Supply w/ PFC
  • System Cooling: 4x 40mm mid-fans
  • Front Panel:
    • Buttons: Power On/Off, System ResetÂ
    • LEDs: Power, Hard drive Activity, Network Activity, System Overheat
  • Color: Black
  • Dimensions (WxDxH): 17.2Â x 19.8Â x 1.7Â inch / 437.0 x 503.0 x 43.0 mm
  • Net Weight: 17.6 lbs / 8.0 kg
  • RoHS Compliant
