SMC-SYS-5019C-MHN2-00
MPN: SYS-5019C-MHN2

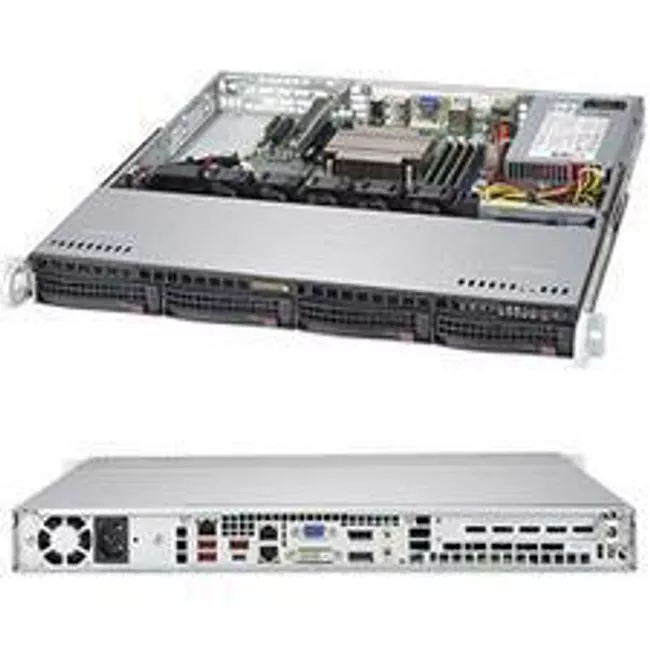

Supermicro SYS-5019C-MHN2 Barebone System - 1U Rack-Mount - Intel C246 Chipset - Socket H4 LGA-1151

Highlights
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-5019C-MHN2
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
5019C-MHN2
Product Name
SuperServer 5019C-MHN2
Product Type
Barebone System
Processor
Number of Processors Supported
1
Processor Socket
Socket H4 LGA-1151
Processor Supported
  • Xeon
  • Core i9
  • Core i7
  • Core i5
  • Core i3
  • Celeron
  • Pentium
    • 64-bit Processing
    Yes
    Chipset
    Chipset Manufacturer
    Intel
    Chipset Model
    C246
    Memory
    Maximum Memory Supported
    128 GB
    Memory Technology
    DDR4 SDRAM
    Memory Standard
    DDR4-2666/PC4-21300
    Number of Total Memory Slots
    4
    Controllers
    Controller Type
    Serial ATA/600
    RAID Supported
    Yes
    Display & Graphics
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2500
    Network & Communication
    Ethernet Technology
    Gigabit Ethernet
    I/O Expansions
    Number of Total Expansion Bays
    4
    Number of 3.5" Bays
    4
    Total Number of Expansion Slots
    1.0
    Number of PCI Express x16 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of SATA Interfaces
    5
    Power Description
    Input Voltage
  • 120 V AC
  • 230 V AC
    • Number of Power Supplies Installed
    1
    Maximum Power Supply Wattage
    350 W
    Physical Characteristics
    Color Family
    Black
    Product Color
    Black
    Form Factor
    Rack-mountable
    Rack Height
    1U
    Height
    1.7"
    Width
    17.2"
    Depth
    19.8"
    Weight (Approximate)
    17.99 lb
    Miscellaneous
    Package Contents
    • SuperServer 5019C-MHN2
    • 1 x Super X11SCZ-F Motherboard
    • 1 x 1U Chassis
    • 1 x 1U 4-Port 12Gbps Backplane Support 4x3.5
    • 1 x SATA,INT,ROUND,ST-RA,55CM,30AWG
    • 1 x CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,27CM,28AWG
    • 2 x SATA,INT,ROUND,ST-RA,31CM,30AWG
    • 1 x SATA,INT,ROUND,ST-RA,45CM,30AWG
    • 1 x 4 pin to 4 pin Fan Extension Cord, for PWM fan. 23cm. 24AWG
    • 1 x 1U I/O Shield for X11SCZ with EMI Gasket
    • 1 x SC811/SC512L/SC512F/SC813M/SC113M/SC513L-410B/SC513L-420B/SC513F, UP X9SRE/I, X9 Mylar Air Shroud, 12"x9.6" MB
    • 1 x RSC-RR1U-E16 with PIC-E x16 Output
    • 1 x 1U Passive Enhanced Performance CPU Heat Sink for Intel Socket H Series Processors
    • 1 x 1U Single AC-DC 350W Platinum Level, Multiple Output Power Supply (180mm)
    • 1 x CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,75CM,28AWG
    • 1 x PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,13A,125V,RoHS/REACH
    • 1 x Black DVD Dummy Cover for SC813, 813M, 815, PBF-RoHS
    • 4 x 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
    • 1 x Front Control Board Dual Color for SC815,SC813M (C)
    • 4 x Black Gen 5.5 Hot-swap 3.5"; HDD Tray
    • 1 x 1U I/O Shield for X10 and X9 Server MB with 5X5mm Vent Hole and EMI Gasket,RoHS/REACH,PBF
    • 1 x Outer Rail, Quick-release type, 25.6"" to 33.05""
    • 1 x Inner Rail, front, short, Quick-release type
    • 1 x Inner Rail, Extension (quick) for 1U 17.2
    • 1 x Fan tray for Six 40x28 fans(SC813M/113M)
    • 2 x Dummy Fan 40x28mm
    Environmentally Friendly
    Yes
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty
    3 Year
