MPN: SYS-5019C-FL

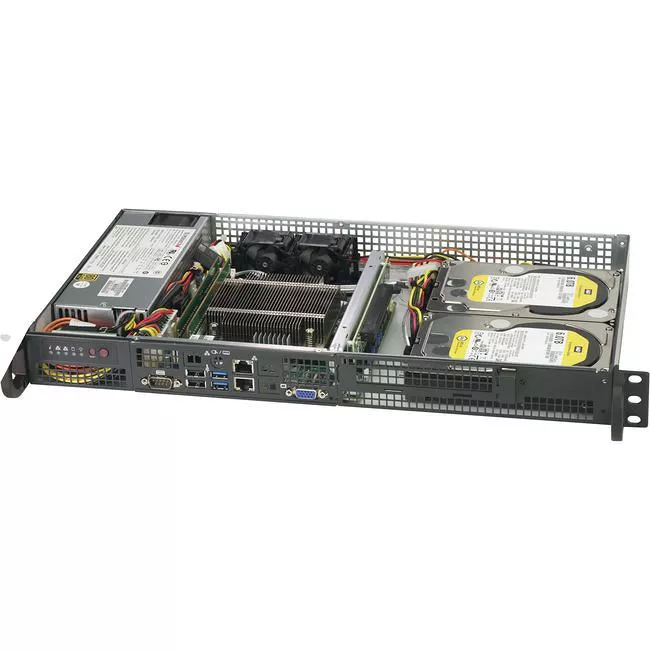

Supermicro SYS-5019C-FL 1U Rack-Mount Barebone - Intel C242 Chipset - Socket H4 LGA-1151 - 1 X CPU
Highlights
About
Specifications
Single Processor
The industry's broadest portfolio of single processor servers providing optimal choice for small to midsize workloads
About
Single Processor
The industry's broadest portfolio of single processor servers providing optimal choice for small to midsize workloads
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-5019C-FL
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
5019C-FL
Product Name
SuperServer 5019C-FL (Black)
Product Type
Barebone System
Processor
Number of Processors Supported
1
Processor Socket
Socket H4 LGA-1151
Processor Supported
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C242
Memory
Maximum Memory Supported
64 GB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
2
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Slots
2
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
4
Number of SATA Interfaces
4
Power Description
Input Voltage
Number of Power Supplies Installed
1
Maximum Power Supply Wattage
200 W
Physical Characteristics
Product Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
9.8"
Weight (Approximate)
8 lb
Miscellaneous
Package Contents
- 1 x Super X11SCL-iF Motherboard
- 1 x SATA,INT,ROUND,ST-ST,55CM,30AWG
- 2 x 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
- 1 x Optional fan tray for one 40x28mm fan in SC813T/SC813LT-single PWS (Fan tray only)
- 1 x 5019C-L/FL Quick Reference Guide
- 1 x RSC-RR1U-E16 with PIC-E x16 output
- 1 x 1U Passive Enhanced Performance CPU Heat Sink for Intel Socket H Series Processors
- 1 x 1U 200W Multi-output 80Plus Gold PWS
- 1 x CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM
- 1 x US power cord 18AWG 6ft, PBF (default for low watt)
- 1 x Front control board dual color for SC815,SC813M (C)
- 1 x 1U I/O shield for X9/X10 STD Server I/O use in SC510, SC505, SC504 with EMI Gasket,RoHS/REACH,PBF
- 1 x SC510 card retainer
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
1 Year
