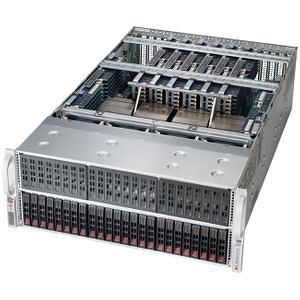

Supermicro's quad-processor Xeon® E7-4800 v2 servers support 11 PCI-E 3.0 and up to 6TB of DDR3 memory in 96 DIMM slots. These servers are designed for enterprise mission critical applications, Cloud Computing, HPC, virtualization, and simulations.
About
Supermicro's quad-processor Xeon® E7-4800 v2 servers support 11 PCI-E 3.0 and up to 6TB of DDR3 memory in 96 DIMM slots. These servers are designed for enterprise mission critical applications, Cloud Computing, HPC, virtualization, and simulations.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-4048B-TRFT
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
4048B-TRFT
Product Name
SuperServer 4048B-TRFT (Black)
Product Type
Barebone System
Processor
Number of Processors Supported
4
Processor Socket
Socket R LGA-2011
Processor Supported
Xeon
QuickPath Interconnect Supported
Yes
Direct Media Interface Supported
No
QuickPath Interconnect
8 GT/s
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C602J
Memory
Maximum Memory Supported
6 TB
Memory Technology
DDR3 SDRAM
Memory Standard
DDR3-1600/PC3-12800
Number of Total Memory Slots
96
Controllers
Controller Type
RAID Supported
Yes
RAID Levels
0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Network & Communication
Ethernet Technology
I/O Expansions
Number of Total Expansion Bays
48
Number of Internal 2.5" Bays
48
Number of Total Expansion Slots
11
Number of PCI Express x8 Slots
7
Number of PCI Express x16 Slots
4
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Network (RJ-45)
Yes
Number of SATA Interfaces
6
Power Description
Input Voltage
Number of Power Supplies Installed
4
Maximum Power Supply Wattage
1620 W
Physical Characteristics
Product Color
Black
Form Factor
Rack-mountable
Rack Height
4U
Height
7"
Width
17.2"
Depth
31.3"
Weight (Approximate)
149.91 lb
Miscellaneous
Package Contents
- SuperServer 4048B-TRFT (Black)
- 1 x CSE-418XTS-R3240B 4U Chassis with 48x HDD trays
- 1 x Super X10QBi Motherboard
- 8 x Supports 12x DIMMs / module (up to 64GB DDR3 ECC RDIMM / slot)
- 1 x Mylar CPU air shroud for SC418X (X10QBi),PBF
- 1 x 24x 2.5"HDD backplane, support SAS-3 12Gb/s,mini-SAS HD connector,new 29-pin SAS-3 receptacles,support power control stagger spin,pre-charge resistor,fuse protect and SGPIO encl mgmt,RoHS/REACH,PBF
- 2 x cross-over mini SAS HD to 4 SATA w/SB, S. 75cm. 30AWG,HF,RoHS/REACH,PBF
- 4 x 2U Passive CPU Heat Sink for X9 Generation Motherboards w/ Narrow ILM
- 4 x 1620W REDUNDANT POWER MODULE (2 + 2)
- 1 x Add-on Module support VGA, dual 10GBase-T ports, and Dedicated IPMI 2.0 LAN port
- 1 x Mylar CPU air shroud for SC418X (X10QBi),PBF
Certifications & Standards
ACPI 3.0
Environmentally Friendly
Yes
Warranty
Limited Warranty
3 Year
