Designed for applications that require the highest performance at the best price/performance/watt, these Supermicro uni-processor 2U rack servers support the latest Xeon X3400/L3400 Series processors and deliver additional levels of performance, power-efficiency and reliability.
About
Designed for applications that require the highest performance at the best price/performance/watt, these Supermicro uni-processor 2U rack servers support the latest Xeon X3400/L3400 Series processors and deliver additional levels of performance, power-efficiency and reliability.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-2016TI-HTRF
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
2016Ti-HTRF
Product Name

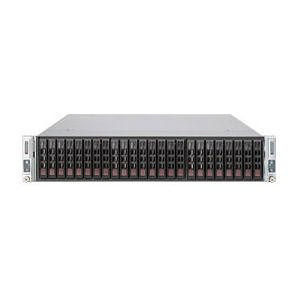

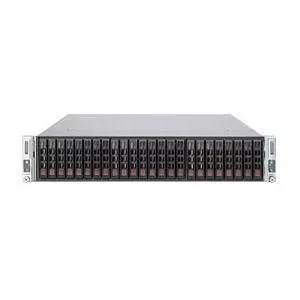

SuperServer 2016Ti-HTRF Barebone System
Product Type
Barebone System
Processor
Number of Processors Supported
1
Processor Socket
Socket H LGA-1156
Processor Supported
Direct Media Interface Supported
Yes
Direct Media Interface
2.50 GT/s
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
3420
Memory
Maximum Memory Supported
32 GB
Memory Technology
DDR3 SDRAM
Memory Standard
DDR3-1333/PC3-10600
Number of Total Memory Slots
6
Controllers
Controller Type
Serial ATA/300
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
Matrox
Graphics Controller Model
G200eW
Graphics Memory Capacity
16 MB
Graphics Memory Technology
DDR2 SDRAM
Network & Communication
Ethernet Technology
I/O Expansions
Number of Internal 2.5" Bays
6
Number of Total Expansion Slots
1
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 2.0 Ports
4
Network (RJ-45)
Yes
VGA
Yes
Number of SATA Interfaces
6
Power Description
Input Voltage
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
920 W
Physical Characteristics
Product Color
Black
Form Factor
Rack-mountable
Rack Height
2U
Height
3.5"
Width
17.3"
Depth
28.5"
Weight (Approximate)
85 lb
Miscellaneous
Package Contents
- SuperServer 2016Ti-HTRF Barebone System
- 4 x Super X8SIT-HF Motherboard
- 1 x 2U Black Chassis
- 4 x 2U Air Shroud
- 4 x Backplane
- 1 x sup 24x2.5 SAS/SATA HDD; 126 mil Thickness
- 1 x DRIVER CD FOR X8 UP MOTHERBOARD
- 2 x 1U REDUNDANT 920W PMBus 94% EFFICIENCY
- 4 x RSC-R1U-E16R Riser Card
- 4 x 1U PASSIVE CPU HS FOR INTEL LGA1156
- 1 x SC827 24PIN SPECIAL OUTPUT POWER DISTRIBUTOR
- 4 x 80X38MM 9.5K RPM 4-PIN PWM FAN FOR SC827
- 1 x Rail Set, Quick/Quick, Default for 2,3U 17.2"W
- 24 x Black Gen 3 Hot Swap 2.5" HDD Tray
Additional Information
System Detail:
- 4 x Hot-pluggable Systems (nodes) in a 2U form factor
Storage Controller Detail:
- Serial ATA Controller supports RAID 0, 1, 10 for Linux
- Serial ATA Controller supports RAID 0, 1, ,5 10 for Windows
Certifications & Standards
- DMI 2.3
- PCI 2.3
- ACPI 1.0 / 2.0
Environmentally Friendly
Yes
Warranty
Limited Warranty
3 Year
