Supermicro's X10 Broadwell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
About
Supermicro's X10 Broadwell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-1028TP-DC0TR
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
1028TP-DC0TR
Product Name

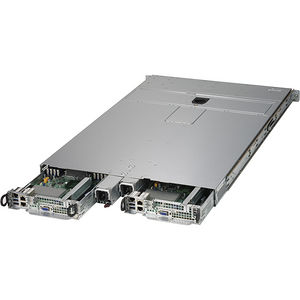

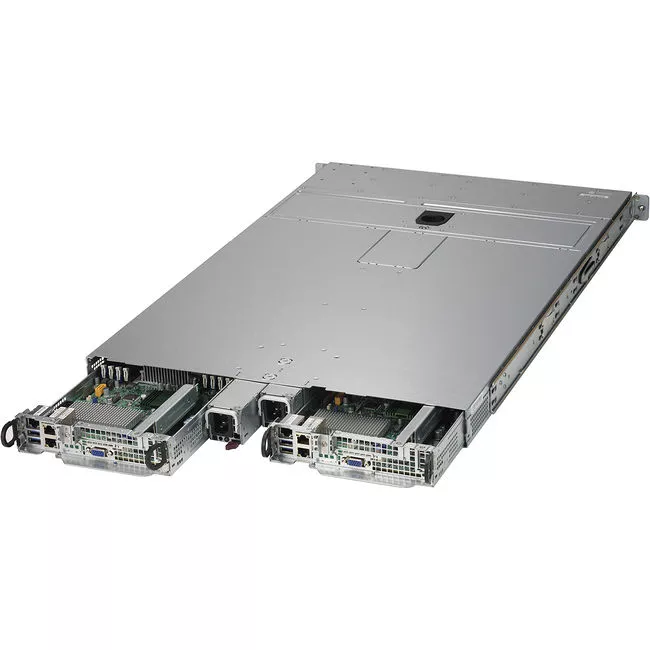

SuperServer 1028TP-DC0TR (Black)
Product Type
Barebone System
Processor
Number of Nodes
2
Number of Processors Supported
2
Processor Socket
Socket R3 LGA-2011
Processor Supported
Xeon
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C612
Memory
Maximum Memory Supported
2 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2400/PC4-19200
Number of Total Memory Slots
16
Controllers
Controller Type
12Gb/s SAS
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Network & Communication
Ethernet Technology
10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
4
Number of Internal 2.5" Bays
4
Total Number of Expansion Slots
2.0
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 3.0 Ports
2
Number of SAS Interfaces
4
Power Description
Input Voltage
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
1000 W
Physical Characteristics
Color Family
Black
Product Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
28.3"
Weight (Approximate)
33.51 lb
Miscellaneous
Package Contents
- SuperServer 1028TP-DC0TR (Black)
- 2 x Super X10DRT-PT Motherboards
- 1 x 1U Chassis
- 2 x LSI 3008, SAS 12Gbs (X6 port inside)
- 1 x 8-port 1U TwinPro SAS3 12Gbps (4 drives per node) backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD
- 2 x PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17
- 1 x CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
- 1 x 1028TP-DC0(R/TR/FR) ,QRG
- 2 x 1U RHS TwinPro Riser card with one PCI-E x16 slot
- 2 x 1U Passive Front CPU Heat Sink w/ a Middle Air Channel for X9, X10 2U Twin^2+ and Twin Pro^2 Series Servers
- 2 x 1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
- 2 x 1000W Redundant Titanium Level (96%) Power Supplies
Environmentally Friendly
Yes
Warranty
Limited Warranty
3 Year
