Supermicro's New Generation X10 Haswell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
About
Supermicro's New Generation X10 Haswell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-1028R-WC1R
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
1028R-WC1R
Product Name

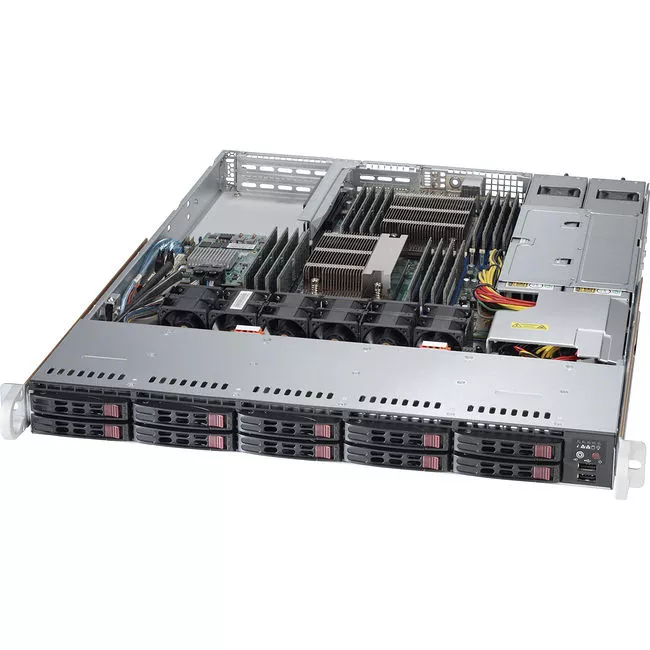

SuperServer 1028R-WC1R (Black)
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket LGA 2011-v3
Processor Supported
Xeon
QuickPath Interconnect Supported
Yes
QuickPath Interconnect
9.60 GT/s
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C610
Memory
Maximum Memory Supported
1 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2133/PC4-17000
Number of Total Memory Slots
16
Controllers
Controller Type
RAID Supported
Yes
RAID Levels
0, 1, 5, 6, 10, 50, 60
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Network & Communication
Ethernet Technology
I/O Expansions
Number of Total Expansion Bays
10
Number of Internal 2.5" Bays
10
Total Number of Expansion Slots
2.0
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
6
Number of USB 3.0 Ports
6
Network (RJ-45)
Yes
VGA
Yes
Number of SATA Interfaces
2
Number of SAS Interfaces
8
Power Description
Input Voltage
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
750 W
Physical Characteristics
Color Family
Black
Product Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
23.5"
Miscellaneous
Package Contents
- SuperServer 1028R-WC1R (Black)
- 1 x Super X10DRW-i Motherboard
- 1 x 1U Chassis
- 1 x Backplane support 8x 2.5" SAS2/SAS3/SATA3 HDD/SSD on device ID[1-8], with SGPIO. Support 2x 2.5" PCIe NVMe SSD on device ID[9-10] - with PCIe x1,x2,x4 support, max 25W/slot.,RoHS/REACH,PBF
- 1 x Internal Mini-SAS HD to Mini-SAS HD 35cm,30AWG,12Gb/s,HF,RoHS/REACH,PBF
- 1 x 8 pin to 8 pin round SGPIO cable, 61.5cm, 28AWG, pinout 1-1,RoHS/REACH
- 2 x 55cm 30AWG SATA S-S cable
- 1 x Internal Mini-SAS HD to Mini-SAS HD 25cm,30AWG,HF,RoHS/REACH,PBF
- 1 x RSC-R1UW-2E16-O-P
- 1 x 1U Passive Front CPU Heat Sink w/ a Side Air Channel for X9, X10 Systems Equipped with a Narrow ILM MB
- 1 x 1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
- 2 x 1U 750W redundant power width 54.5mm(Platinum),HF,RoHS/REACH,PBF
Certifications & Standards
- ACPI 1.0
- ACPI 2.0
- ACPI 3.0
- ACPI 4.0
Environmentally Friendly
Yes
Warranty
Limited Warranty
3 Year
